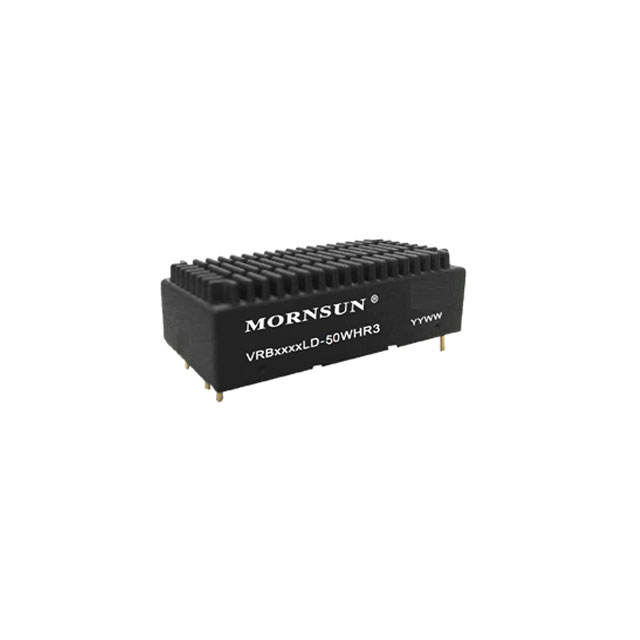

VRB2403LD-50WHR3

VRB2403LD-50WHR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is ISOLATED MODULE DC DC CONVERTER. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for VRB2403LD-50WHR3

• Description：ISOLATED MODULE DC DC CONVERTER
• Series：VRB24_LD-50W(H)R3 (50W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：10A
• Power (Watts)：33 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：62368-1

DC DC Converters datasheet and documents for VRB2403LD-50WHR3
