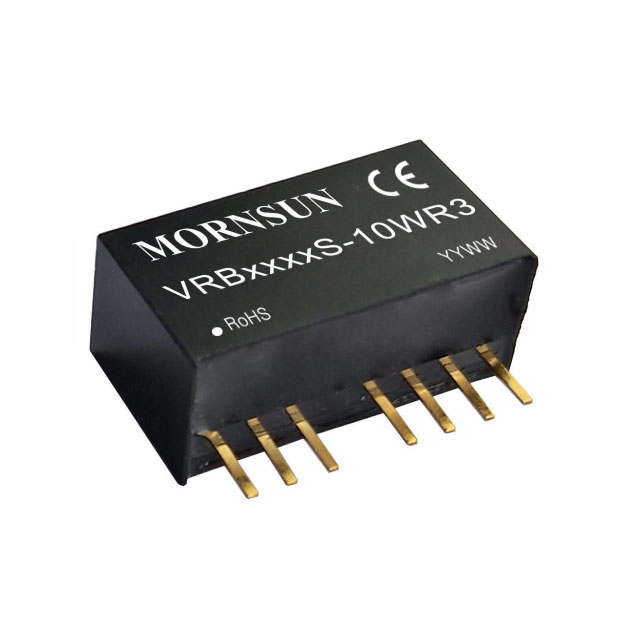

VRB2403S-10WR3

VRB2403S-10WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER 3.3V 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for VRB2403S-10WR3

• Description：DC DC CONVERTER 3.3V 10W
• Series：VRB2403S-10WR3 (10W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2.4A
• Power (Watts)：7.9 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 7 Leads
• Size / Dimension：0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, UKCA
• Standard Number：62368-1

DC DC Converters datasheet and documents for VRB2403S-10WR3
