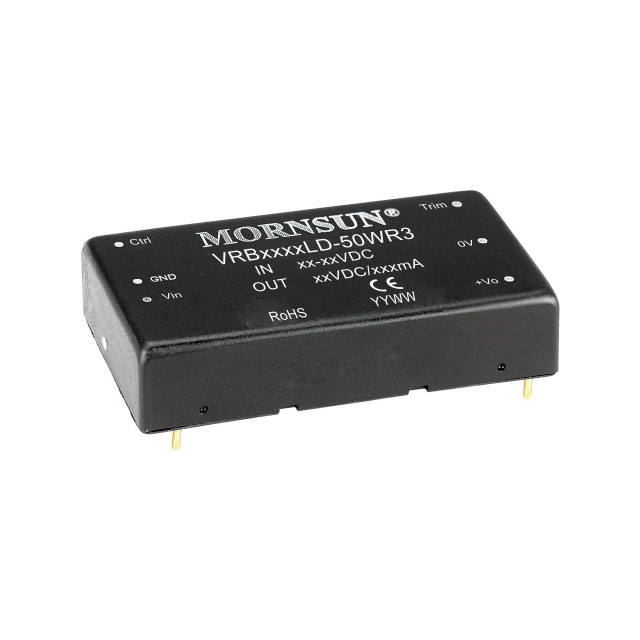

VRB4815LD-50WR3

VRB4815LD-50WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER,50W,15VDC. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for VRB4815LD-50WR3

• Description：DC DC CONVERTER,50W,15VDC
• Series：VRB_LD-50WR3 (50W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：3.333A
• Power (Watts)：50 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：92%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：-

DC DC Converters datasheet and documents for VRB4815LD-50WR3
