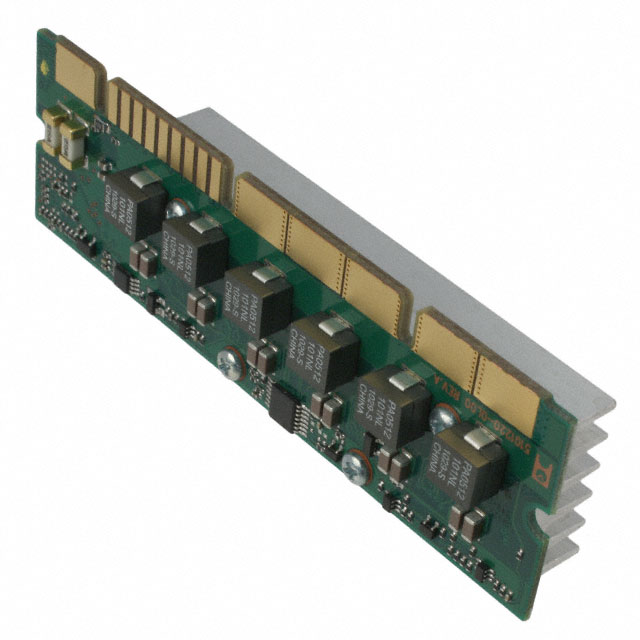

VRM64-80-12-UY

VRM64-80-12-UY is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 0.8-1.55V 124W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for VRM64-80-12-UY

• Description：DC DC CONVERTER 0.8-1.55V 124W
• Series：VRM64
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：0.8 ~ 1.55V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：80A
• Power (Watts)：124 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OVP, UVLO
• Operating Temperature：0°C ~ 60°C
• Efficiency：84%
• Mounting Type：Card Edge
• Package / Case：Module
• Size / Dimension：3.68" L x 0.75" W x 1.16" H (93.4mm x 19.1mm x 29.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for VRM64-80-12-UY
