VS-3EYH01-M3/H

$0.41

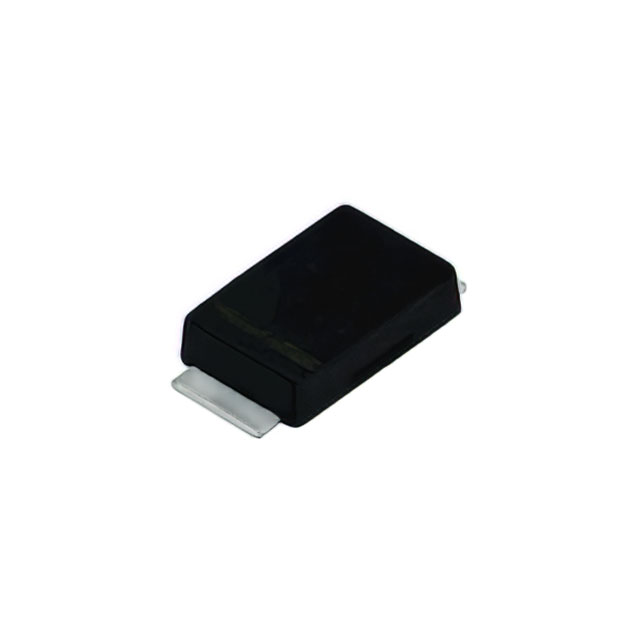

Description：DIODE STANDARD 100V 3A SLIMSMAW
Series：eSMP®
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3b17aa481e67 Category: Single Diodes Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VS-3EYH01-M3/H is listed in the Single Diodes range at ChipApex. The manufacturer field lists Vishay General Semiconductor - Diodes Division. Its product description is DIODE STANDARD 100V 3A SLIMSMAW. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for VS-3EYH01-M3/H

Description：DIODE STANDARD 100V 3A SLIMSMAW
Series：eSMP®
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：100 V
Current - Average Rectified (Io)：3A
Voltage - Forward (Vf) (Max) @ If：950 mV @ 3 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：30 ns
Current - Reverse Leakage @ Vr：2 µA @ 100 V
Capacitance @ Vr, F：16pF @ 200V
Mounting Type：Surface Mount
Package / Case：DO-221AC, SMA Flat Leads
Supplier Device Package：SlimSMAW (DO-221AD)
Operating Temperature - Junction：-55°C ~ 175°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for VS-3EYH01-M3/H

VS-3EYH01-M3/H

Single Diodes Overview

The VS-3EYH01-M3/H is a hyperfast rectifier from Vishay's eSMP® series, utilizing FRED Pt® technology. It features a SlimSMAW (DO-221AD) surface-mount package with a maximum average forward current of 3 A and a peak repetitive reverse voltage of 100 V. The device exhibits a typical reverse recovery time of 16 ns and a low forward voltage drop of 0.71 V at 150 °C. Operating junction temperatures range from -55 °C to +175 °C.

Single Diodes Feature Summary

FRED Pt® technology enables ultra-fast switching characteristics for high-frequency applications
Low profile SlimSMAW package designed for automated placement efficiency
Halogen-free construction with matte tin-plated leads compliant with RoHS standards

Single Diodes Applications

High frequency DC/DC converters
Power factor correction (PFC) circuits
Freewheeling diodes in industrial systems
Snubber circuits in automotive electronics

Single Diodes Procurement Notes

Verify the specific suffix 'H' corresponds to the 3500-unit 7-inch tape and reel packaging configuration. Confirm that the component meets MSL Level 1 requirements and withstands lead-free soldering processes up to 260 °C. Ensure compliance with UL 94 V-0 flammability ratings for molding compounds during integration.

Single Diodes Selection Notes

Select this component when space constraints require a SlimSMAW footprint alongside high-speed switching capabilities. The 100 V rating suits low-voltage power stages requiring minimal leakage current. Consider thermal resistance limits when designing heatsinking solutions for continuous 3 A operation.

Single Diodes Part Context

This part belongs to the VS-3EYH series of hyperfast rectifiers manufactured by Vishay General Semiconductor. It shares the same physical SlimSMAW outline as the 200 V rated VS-3EYH02 variant but is optimized for 100 V blocking applications within the eSMP® product family.
