VS-ETF075Y60U

$71.77

Description：IGBT MOD 600V 109A EMIPAK-2B
Series：-

SKU:5d4f4c4b2481 Category: IGBT Modules Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 600V 109A EMIPAK-2B
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Bulk
IGBT Type：Trench
Configuration：Three Level Inverter
Vce(on) (Max) @ Vge, Ic：1.93V @ 15V, 75A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：EMIPAK-2B
Supplier Device Package：EMIPAK-2B
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：100 A
Power - Max：294 W
Current - Collector Cutoff (Max)：100 µA
Input Capacitance (Cies) @ Vce：4.44 nF @ 30 V

Download product information

VS-ETF075Y60U

Overview

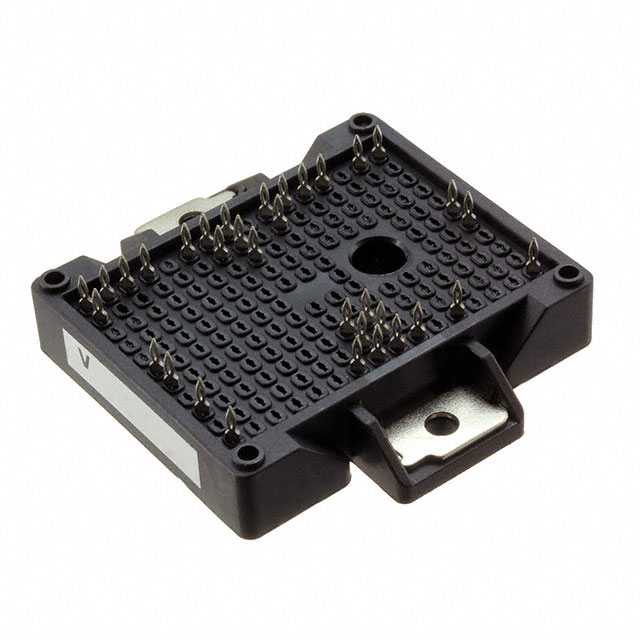

The VS-ETF075Y60U is a Trench IGBT module featuring FRED Pt clamping diodes and PressFit pins. It utilizes an exposed Al2O3 substrate for low thermal resistance. Rated at 600 V, it supports 109 A collector current with a 294 W power dissipation capability. The component is housed in the EMIPAK-2B chassis mount package.

Feature Summary

Trench IGBT technology
FRED Pt clamping diodes
PressFit pins technology
Exposed Al2O3 substrate

Applications

Three Level Inverter
Chassis Mount applications

Procurement Notes

Verify the specific datasheet version to confirm exact electrical parameters and mechanical dimensions. Ensure compatibility with PressFit mounting requirements. Check for any recent product lifecycle updates or alternative package options from Vishay General Semiconductor - Diodes Division before finalizing procurement.

Selection Notes

Select this module for high-power inverter designs requiring robust thermal performance. The Trench IGBT and FRED Pt diodes offer efficient switching characteristics. The exposed Al2O3 substrate aids in heat dissipation. Verify that the 600V rating and 109A current capacity meet the system's operational demands.

Part Context

This component belongs to the discrete semiconductor products category within the Vishay General Semiconductor portfolio. It is specifically designed as an IGBT module for professional industrial applications, emphasizing reliability and adherence to industry standards for power conversion systems.
