VS-SD400C04C

Description：DIODE STD 400V 800A DO200AA APUK
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Bulk

SKU:faecebc03ee4 Category: Single Diodes Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VS-SD400C04C is listed in the Single Diodes range at ChipApex. The manufacturer field lists Vishay General Semiconductor - Diodes Division. Its product description is DIODE STD 400V 800A DO200AA APUK. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for VS-SD400C04C

Description：DIODE STD 400V 800A DO200AA APUK
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Bulk
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：400 V
Current - Average Rectified (Io)：800A
Voltage - Forward (Vf) (Max) @ If：1.86 V @ 1930 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：15 mA @ 400 V
Capacitance @ Vr, F：-
Mounting Type：Clamp On

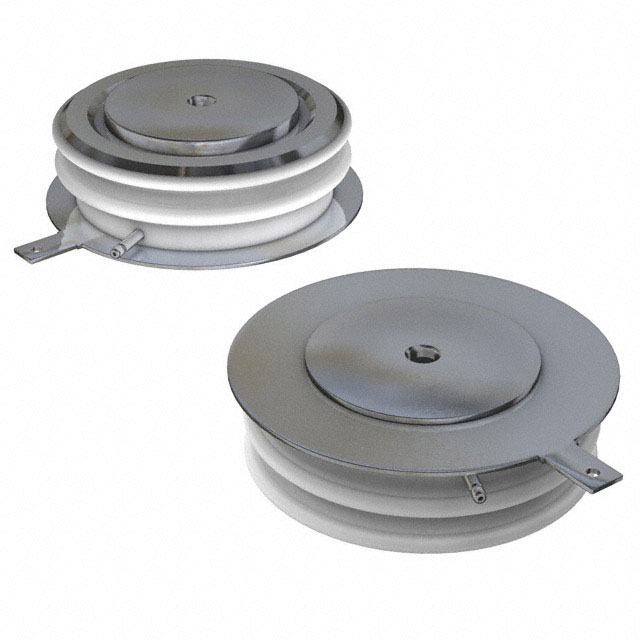

Package / Case：DO-200AA, A-PUK
Supplier Device Package：DO-200AA, A-PUK
Operating Temperature - Junction：-
Grade：-
Qualification：-

Single Diodes datasheet and documents for VS-SD400C04C

VS-SD400C04C

Single Diodes Overview

The VS-SD400C04C is a standard recovery diode from the Vishay SD400C..C series, rated for 800 A average forward current and 400 V maximum repetitive peak reverse voltage. It utilizes a diffused junction technology housed in an A-PUK (DO-200AA) case style. The device supports a junction temperature range of -40 to +190 °C and offers high surge current capabilities with a non-repetitive peak forward surge current of 8640 A at 60 Hz.

Single Diodes Feature Summary

Hockey PUK version utilizing ceramic PUK construction
Designed and qualified for industrial level applications
Diffused junction technology

Single Diodes Applications

Converters
Power supplies
Machine tool controls
High power drives
Medium traction applications

Single Diodes Procurement Notes

Verify the specific part number against official Vishay documentation to confirm the voltage code suffix corresponds to the required rating. Ensure thermal management designs account for single or double-sided cooling requirements as specified in the datasheet. Confirm that the application environment remains within the stated industrial qualification limits and operating temperature ranges.

Single Diodes Selection Notes

Select this component based on the 800 A current handling capability and 400 V blocking voltage requirement. Evaluate thermal resistance parameters for both single and double-sided cooling configurations to ensure adequate heatsinking. Consider the physical dimensions of the DO-200AA package and the necessary mounting force for reliable mechanical attachment.

Single Diodes Part Context

This component belongs to the VS-SD400C..C series of standard recovery diodes manufactured by Vishay Semiconductors. The series covers a wide current range up to 800 A and voltage ratings extending up to 2400 V. These devices are engineered for robust performance in demanding industrial environments requiring high power rectification.
