VS-SD603C04S10C

Single Diodes Overview

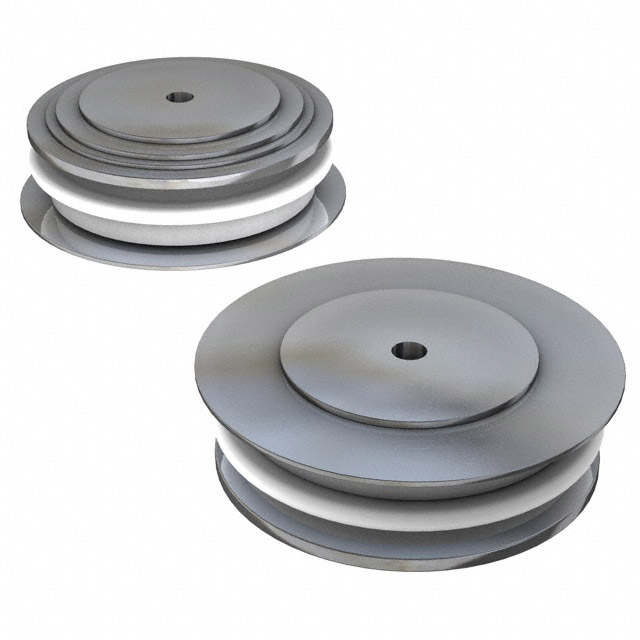

The VS-SD603C04S10C is a fast recovery rectifier manufactured by Vishay Semiconductors. It features a single configuration with a maximum repetitive peak reverse voltage of 400 V and an average forward rectified current of 600 A. The device exhibits a maximum forward voltage drop of 2.97 V at rated current and a typical reverse leakage current of 45 mA. It supports a maximum surge current of 8.715 kA and operates within a junction temperature range of -40°C to +125°C. The component utilizes a stud mount installation style in a B-43 package.

Single Diodes Feature Summary

• Fast recovery rectification capability for high-speed switching applications
• High current handling capacity suitable for power conversion systems
• Robust thermal performance with extended operating temperature range

Single Diodes Applications

• Industrial motor drives
• Power supply units
• Inverter circuits

Single Diodes Procurement Notes

Verify the specific suffix codes against official Vishay documentation to ensure exact electrical characteristics match design requirements. Confirm package dimensions and mounting hole specifications prior to integration. Check for any recent product change notices that may affect pinout or material composition. Ensure compatibility with existing thermal management solutions given the high current rating.

Single Diodes Selection Notes

Select this component for applications requiring high current density and fast switching speeds. Evaluate thermal resistance values to determine appropriate heatsinking strategies. Compare forward voltage drop characteristics against alternative devices to optimize system efficiency. Consider the physical size of the B-43 package when designing PCB layouts or chassis mounts.

Single Diodes Part Context

This part belongs to Vishay's high-power rectifier portfolio, designed for demanding industrial environments. It complements other devices in the SD series offering varying voltage and current ratings. The product line emphasizes reliability and durability for continuous operation in critical power electronics infrastructure.

Single Diodes Replacement Considerations

Consult official Vishay cross-reference guides for verified substitutes. Ensure replacement parts maintain identical voltage, current, and package specifications.
