VSAB1770-150M

Fixed Inductors Overview

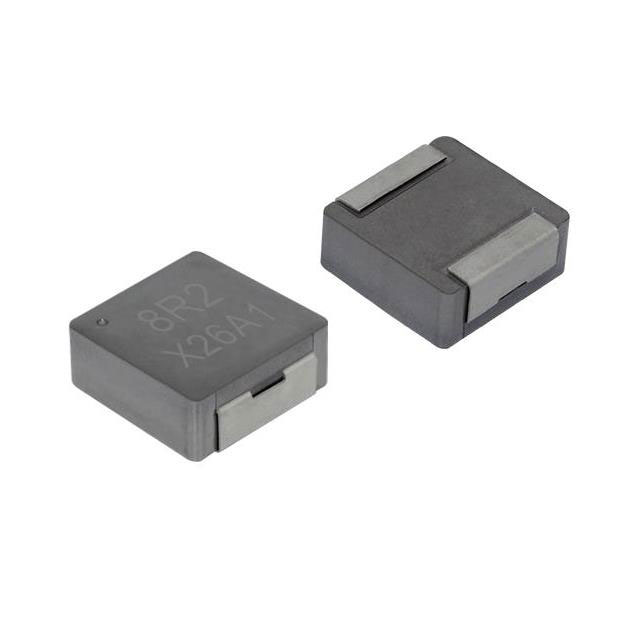

The VSAB1770-150M is a shielded, molded power inductor from the VSAB1770 series manufactured by CODACA. It features an alloy powder core and offers an inductance of 15 µH with a tolerance of ±20%. The component supports a maximum current rating of 11 A and a saturation current of 9 A. Its DC resistance (DCR) is 21 mΩ max. Designed for surface mount installation, it measures 13.45 mm x 12.60 mm x 6.30 mm. The part is qualified to AEC-Q200 standards and operates within a temperature range of -55°C to 155°C.

Fixed Inductors Feature Summary

• AEC-Q200 qualified for automotive electronics reliability
• Shielded molded construction minimizes electromagnetic interference
• Alloy powder core provides high saturation current performance

Fixed Inductors Applications

• Automotive 48 V power modules
• Low-noise bias supplies
• General automotive electronic circuits

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct packaging and tape-and-reel specifications. Confirm that the AEC-Q200 qualification status aligns with your system's automotive grade requirements. Check the lead time availability as manufacturing schedules may vary. Ensure the surface mount footprint matches your PCB design constraints before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when designing circuits requiring a 15 µH inductance with high current handling capabilities up to 11 A. The low DCR of 21 mΩ makes it suitable for efficiency-critical applications. The wide operating temperature range ensures stability in harsh automotive environments. Consider the physical dimensions and surface mount package type for board space optimization during the layout phase.

Fixed Inductors Part Context

This part belongs to the VSAB1770 series of molded power inductors designed specifically for automotive applications. The series is characterized by its robust construction using alloy powder cores and shielded designs to reduce EMI. These components are engineered to meet the stringent reliability standards required in modern vehicle electronics, providing consistent performance under varying thermal and electrical loads.

Fixed Inductors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
