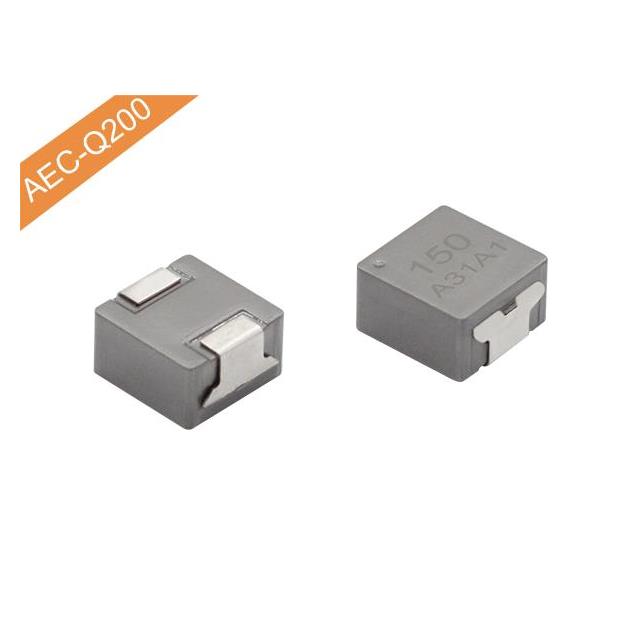

VSHB1054T-220MC is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists CODACA. Its product description is AUTOMOTIVE SMD MOLDING POWER CHK. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for VSHB1054T-220MC
- Description：AUTOMOTIVE SMD MOLDING POWER CHK
- Series：VSHB1054T
- Mfr：CODACA
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Molded
- Material - Core：Alloy Powder
- Inductance：22 µH
- Tolerance：±20%
- Current Rating (Amps)：5.6 A
- Current - Saturation (Isat)：6.2A
- Shielding：Shielded
- DC Resistance (DCR)：45mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 165°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.427" L x 0.402" W (10.85mm x 10.20mm)
- Height - Seated (Max)：0.213" (5.40mm)
- Features：-
Fixed Inductors datasheet and documents for VSHB1054T-220MC
Fixed Inductors Overview
The VSHB1054T-220MC is a shielded molded power inductor from the CODACA VSHB1054T series, designed for automotive-grade applications. It features an innovative T-core magnetic structure and thermal molding technology to eliminate compression deformation and enhance reliability. The component offers low DC resistance and ultra-low losses, with an inductance of 22 µH and a saturation current capability supporting high-power density designs. It operates within a temperature range of -40°C to +125°C.
Fixed Inductors Feature Summary
- Advanced T-core design improves power density
- Excellent resistance to electromagnetic interference
- Excellent resistance to mechanical shock
Fixed Inductors Applications
- Automotive electronic systems
- Buck converters
- Power supply circuits
Fixed Inductors Procurement Notes
Verify the specific electrical parameters, including DC resistance and current ratings, against the official datasheet for the VSHB1054T-220MC variant. Confirm that the component meets the required automotive grade standards and operating temperature specifications before integration into final designs.
Fixed Inductors Selection Notes
Select this component for applications requiring high reliability and resistance to mechanical shock. The thermal molding process ensures stability against compression deformation. Ensure the selected inductance value aligns with the circuit's power conversion requirements and that the package size fits the available PCB space.
Fixed Inductors Part Context
This part belongs to the VSHB1054T series of power chokes manufactured by CODACA Electronic Co., Ltd. The series utilizes composite structural designs and hot molding techniques to achieve superior performance characteristics compared to standard molded inductors, specifically targeting robustness in demanding environments.
Fixed Inductors Replacement Considerations
Consult official substitution lists for compatible alternatives. Verify pin compatibility and electrical specifications if considering cross-brand replacements.
