VSKY05401006-G4-08

Single Diodes Overview

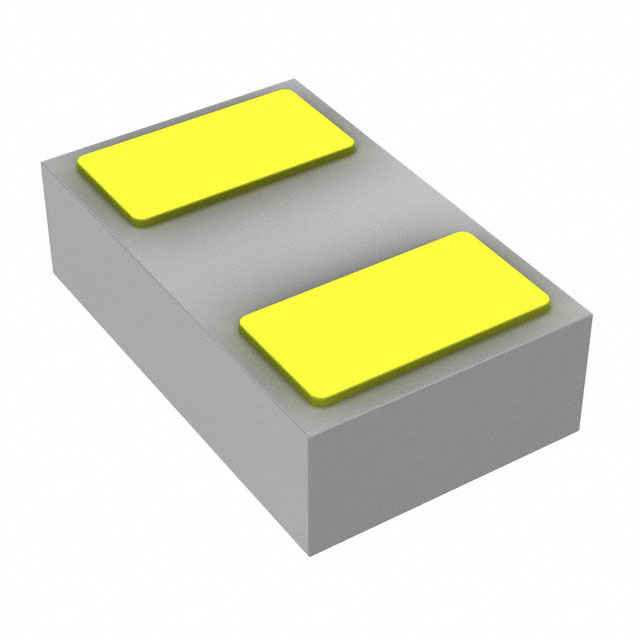

The VSKY05401006-G4-08 is a surface-mount Schottky rectifier from Vishay Semiconductors, utilizing FlipKY® Gen 2 technology. It features a single diode configuration in the CLP1006-2L package with dimensions of 1.0 mm x 0.6 mm x 0.29 mm. The device supports a maximum repetitive reverse voltage (VRRM) of 40 V and a maximum average forward rectified current (IF(AV)) of 0.5 A. Electrical characteristics include a typical forward voltage drop of 425 mV at 0.5 A and a leakage current of less than 15 μA at 10 V. Diode capacitance is typically 140 pF at 0 V reverse bias.

Single Diodes Feature Summary

• FlipKY® Gen 2 surface-mount construction for high-speed switching applications
• Extremely low physical profile suitable for space-constrained designs
• Low forward voltage drop to minimize power loss
• Minimal reverse leakage current

Single Diodes Applications

• High-frequency switching circuits
• Space-limited electronic assemblies
• Power management modules requiring low-profile components

Single Diodes Procurement Notes

Verify the specific ordering code suffix against official documentation to confirm compliance attributes and packaging details. Ensure that the selected component meets all thermal and electrical requirements for the intended operating environment before finalizing procurement decisions.

Single Diodes Selection Notes

Select this component when a compact Schottky barrier rectifier is required for high-speed switching operations. Consider the 40 V reverse voltage rating and 0.5 A current capacity relative to circuit demands. Evaluate the thermal resistance and junction temperature limits to ensure reliable operation under expected load conditions.

Single Diodes Part Context

This part belongs to the VSKY05401006 series manufactured by Vishay Semiconductors. It represents a specialized line of ultra-small Schottky diodes designed for modern electronics where board space is limited. The FlipKY® technology enables robust performance within a minimal footprint compared to traditional discrete packages.

Single Diodes Replacement Considerations

Consult official manufacturer substitution lists or cross-reference databases for verified equivalent parts. Ensure any replacement maintains identical pinout, voltage ratings, and current handling capabilities.
