VSLFUU98-102

Overview

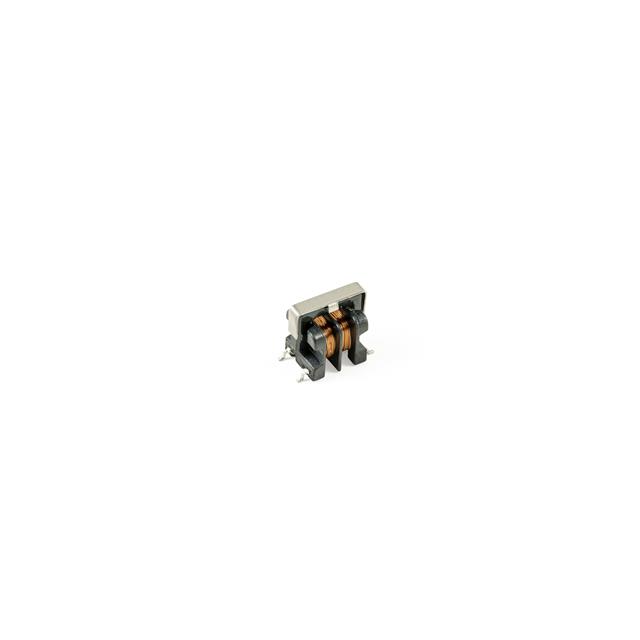

The VSLFUU98-102 is a surface-mount common mode choke manufactured by Allied Components International. It features an inductance of 1 mH and a maximum DC resistance of 350 milliohms. The component has a rated current capacity of 700 mA and operates within a temperature range of -55°C to +105°C. It utilizes a vertical, four-gull-wing package with dimensions of 17.0 mm in length, 12.0 mm in width, and 16.0 mm in height.

Feature Summary

• Provides common mode noise suppression for differential signal lines
• Designed for surface-mount assembly using a vertical gull-wing footprint
• Constructed for operation in industrial and commercial environments

Applications

• Telecommunications equipment filtering
• Networking interface protection
• Test equipment signal conditioning

Procurement Notes

Verify the specific datasheet version from Allied Components International or authorized distributors to confirm exact dimensional tolerances and thermal characteristics. Ensure the selected component matches the required 700 mA rating and 1 mH inductance for the target circuit design before finalizing procurement.

Selection Notes

Select this component when a compact surface-mount solution is required for low-current common mode noise reduction. The vertical package orientation allows for space-constrained layouts. Confirm that the 350 milliohm DC resistance meets the power loss requirements of the application.

Part Context

Allied Components International designs and manufactures magnetic components for networking, telecommunications, and power conversion markets. This part belongs to their standard line of passive filters intended for commercial and industrial electronic systems.

Replacement Considerations

No public substitute part numbers are confirmed in the available documentation.
