VTX30-L25LP08-24.576M

Oscillators Overview

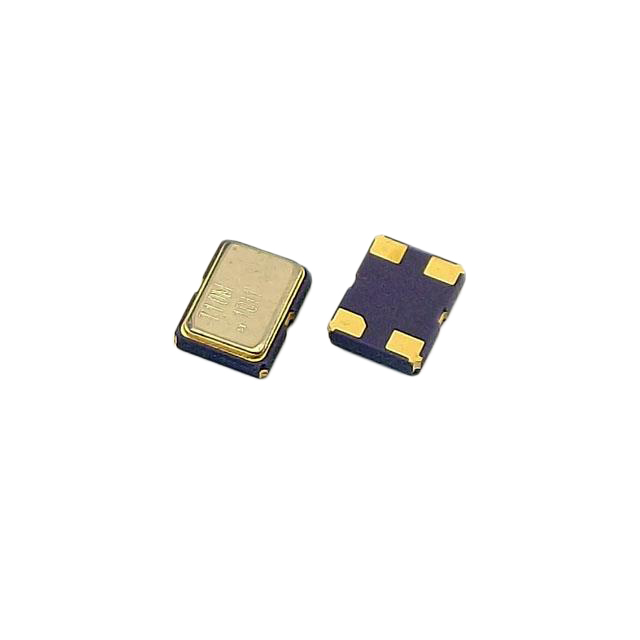

The VTX30-L25LP08-24.576M is a Voltage-Controlled Temperature Compensated Crystal Oscillator (VCTCXO) manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 24.576 MHz and utilizes a crystal base resonator. The device outputs a clipped sine wave signal with a 3V amplitude control specification. It is designed for surface mount installation in a compact 4-SMD, No Lead package configuration.

Oscillators Feature Summary

• Voltage-controlled temperature compensation for frequency stability
• Clipped sine wave output signal generation
• Surface mount package design for automated assembly

Oscillators Applications

• Wireless communication modules requiring precise frequency control
• Portable electronic devices utilizing voltage-controlled oscillators
• Embedded systems needing compact clock sources

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure the correct output waveform and voltage specifications match the design requirements. Confirm that the 4-SMD no-lead package dimensions align with the target PCB footprint. Check RoHS compliance status if environmental regulations apply to the final product assembly process.

Oscillators Selection Notes

Select this component when a voltage-controlled input is required to adjust the oscillator frequency within a specified range. The clipped sine wave output is suitable for driving subsequent stages that accept analog or semi-digital inputs. Ensure the operating environment remains within the standard commercial temperature limits defined for the series.

Oscillators Part Context

This part belongs to the VTX30 series of voltage-controlled oscillators from Transko Electronics. The series provides solutions for applications requiring tunable frequency references. The specific model indicates a 24.576 MHz center frequency and a 4-pin surface mount form factor common in modern miniaturized electronics.

Oscillators Replacement Considerations

Direct substitutes must match the VCTCXO type, 24.576 MHz frequency, and 4-SMD package. Verify compatibility of the clipping sine wave output with the receiving circuitry before swapping manufacturers.
