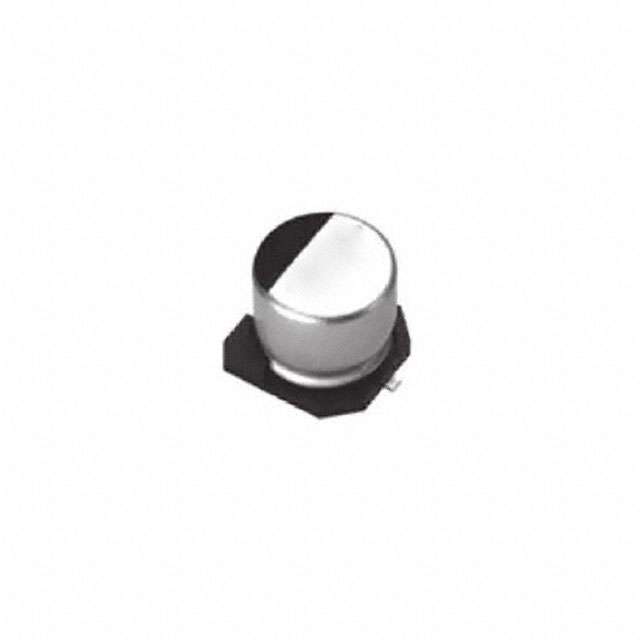

VUJ471M1HTR-1621S

VUJ471M1HTR-1621S is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists SURGE. Its product description is CAP ALUM 470UF 20% 50V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for VUJ471M1HTR-1621S

• Description：CAP ALUM 470UF 20% 50V SMD
• Series：VUJ
• Mfr：SURGE
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：470 µF
• Tolerance：±20%
• Voltage - Rated：50 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：1000 Hrs @ 150°C
• Operating Temperature：-55°C ~ 150°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：-
• Ripple Current @ High Frequency：850 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.630" Dia (16.00mm)
• Height - Seated (Max)：0.866" (22.00mm)
• Surface Mount Land Size：0.669" L x 0.669" W (17.00mm x 17.00mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for VUJ471M1HTR-1621S
