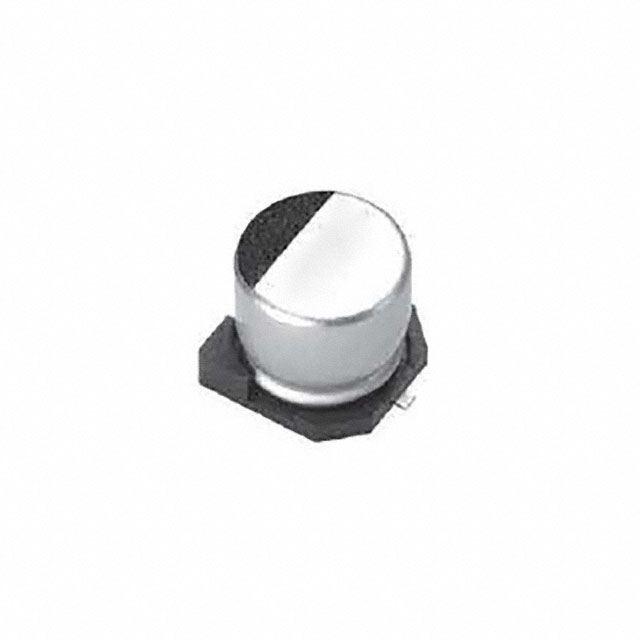

VZU221M1HTR-0810S

VZU221M1HTR-0810S is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists SURGE. Its product description is CAP ALUM 220UF 20% 50V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for VZU221M1HTR-0810S

• Description：CAP ALUM 220UF 20% 50V SMD
• Series：VZU
• Mfr：SURGE
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：220 µF
• Tolerance：±20%
• Voltage - Rated：50 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：5000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：-
• Ripple Current @ High Frequency：670 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.413" (10.50mm)
• Surface Mount Land Size：0.327" L x 0.327" W (8.30mm x 8.30mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：180 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for VZU221M1HTR-0810S
