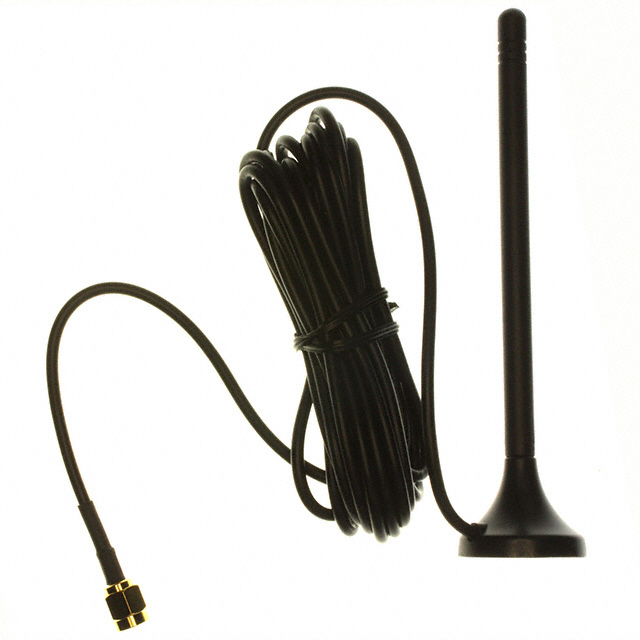

W122M1-110-AM-AMPS/PCS is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 892MHZ/1.9GHZ WHIP STR. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for W122M1-110-AM-AMPS/PCS
- Description：RF ANT 892MHZ/1.9GHZ WHIP STR
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：Cellular, General ISM
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：892MHz, 1.9GHz
- Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
- Antenna Type：Whip, Straight
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：0dBi, 2dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：4.724" (120.00mm)
- Applications：AMPS, PCS
- Power - Max：-
Antennas RF datasheet and documents for W122M1-110-AM-AMPS/PCS
Antennas RF Overview
The W122M1-110-AM-AMPS/PCS is an external whip antenna manufactured by Nearson Inc. designed for cellular and general ISM applications. It operates across dual frequency bands, specifically covering the AMPS band at 892 MHz and the PCS band at 1.9 GHz. The component features a straight whip design with a connector mount type, utilizing an SMA female interface for secure attachment to host devices.
Antennas RF Feature Summary
- Dual-band operation supporting both AMPS and PCS cellular standards
- Straight whip structural design for omnidirectional signal transmission
- SMA female connector interface for direct device integration
Antennas RF Applications
- Cellular communication systems requiring AMPS support
- PCS band wireless data transmission equipment
- General ISM band industrial applications
Antennas RF Procurement Notes
Verify the specific frequency range against your system requirements, as sources indicate variations between 850 MHz and 892 MHz for similar models. Confirm the SMA female connector compatibility with your existing hardware. Ensure the straight whip form factor fits within your enclosure constraints. Cross-reference the manufacturer datasheet for precise electrical specifications before finalizing the order.
Antennas RF Selection Notes
Select this model when dual-band coverage for legacy AMPS and modern PCS networks is required in a single unit. The straight whip configuration offers a balance between gain and physical profile. Consider the SMA connector type if your application utilizes standard RF interfaces. Evaluate the UHF frequency group classification to ensure it meets regulatory compliance for your target region.
Antennas RF Part Context
This component belongs to the Nearson W122M1 series of RF antennas. The series focuses on providing reliable connectivity for cellular and ISM applications. The specific suffix indicates the frequency bands and connector type, distinguishing it from other variants in the product line that may offer different mounting styles or frequency ranges.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult official distributor catalogs for equivalent dual-band whip antennas with matching SMA interfaces and frequency specifications.
