W25N512GWPIR

Memory IC Overview

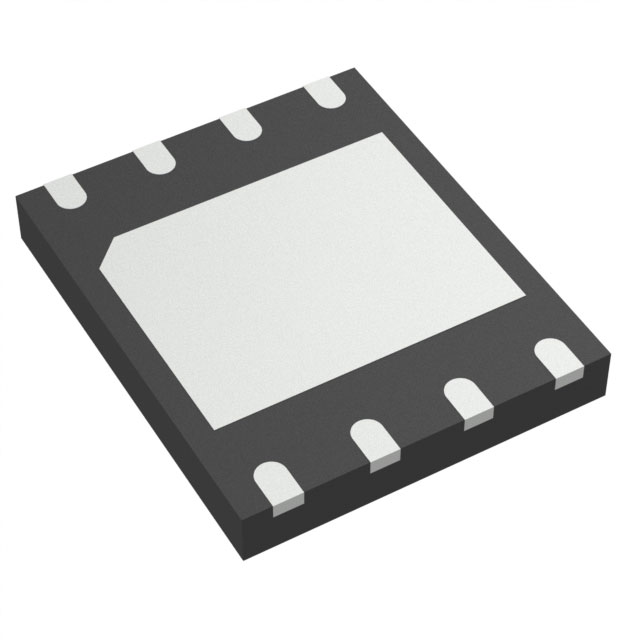

The W25N512GWPIR is a 512M-bit Serial SLC NAND Flash Memory from the Winbond SpiFlash family, designed for systems with limited space and power. It operates on a single 1.70V to 1.95V supply voltage and supports Standard, Dual, and Quad SPI interfaces with clock frequencies up to 104MHz. The device features an 8-pad WSON 6x5-mm package and includes advanced functions such as Continuous Read Mode, on-chip 1-Bit ECC, bad block management, and hardware write protection.

Memory IC Feature Summary

• Supports Standard, Dual, and Quad SPI interfaces with high-speed data transfer capabilities
• Features Continuous Read Mode for efficient access to the entire memory array without issuing repeated commands
• Includes on-chip 1-Bit ECC and configurable bad block management for improved reliability
• Provides flexible architecture with software and hardware write protection options

Memory IC Applications

• Code shadowing to RAM
• Executing code directly from Dual/Quad SPI (XIP)
• Storing voice, text, and data in embedded systems

Memory IC Procurement Notes

Verify the specific ordering suffix 'P' corresponds to the 8-pad WSON 6x5-mm package configuration before procurement. Confirm that the required operating voltage range of 1.70V to 1.95V aligns with the system design. Ensure compatibility with the standard SPI command set if migrating from other devices. Check for any recent Product Change Notifications (PCNs) regarding package or material updates.

Memory IC Selection Notes

Select this component when a low-power, space-efficient NAND solution is required for embedded applications. It is suitable for designs needing XIP capabilities or efficient code execution from flash. Consider the 1.8V supply requirement and ensure the PCB layout accommodates the WSON 6x5-mm footprint. Evaluate the need for ECC handling if the application demands high data integrity beyond the internal 1-Bit correction.

Memory IC Part Context

This part belongs to the W25N512GW series, which offers various package options including WSON, SOIC, TFBGA, and WLCSP. The 'R' suffix indicates a default Buffer Read Mode after power-up, while 'T' indicates Continuous Read Mode. This specific variant uses the WSON 6x5-mm package, providing a compact form factor compared to traditional NAND packages.

Memory IC Replacement Considerations

Direct substitutes within the same family include W25N512GWEIT (WSON 8x6-mm) and W25N512GWFIR (SOIC-16). Verify pinout compatibility and package dimensions when replacing. Other variants like W25N512GVPIR operate at different voltages and are not electrically compatible.
