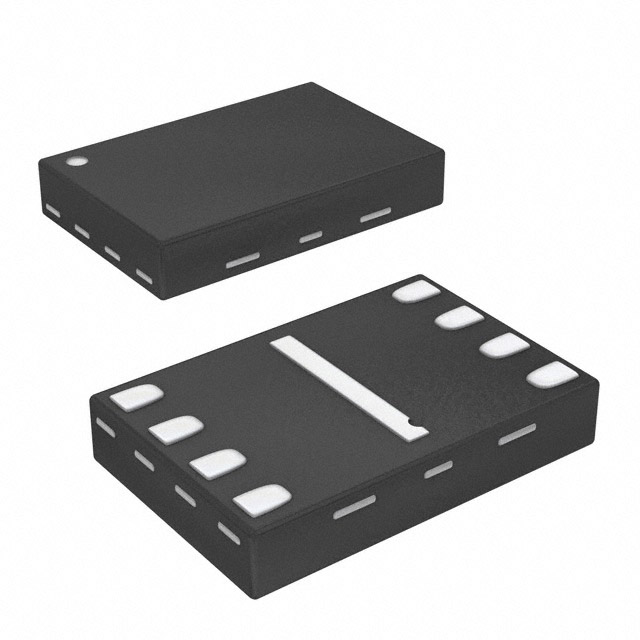

W25X10CLUXIG TR

$0.42

Description：IC FLASH 1MBIT SPI 104MHZ 8USON
Series：SpiFlash®
Mfr：Winbond Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:0023b726a46e Category: Memory IC Brand: Winbond Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

W25X10CLUXIG TR is listed in the Memory IC range at ChipApex. The manufacturer field lists Winbond Electronics. Its product description is IC FLASH 1MBIT SPI 104MHZ 8USON. Review the specifications below when checking this part for your BOM.

Memory IC specifications for W25X10CLUXIG TR

Description：IC FLASH 1MBIT SPI 104MHZ 8USON
Series：SpiFlash®
Mfr：Winbond Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Memory Type：Non-Volatile
Memory Format：FLASH
Technology：FLASH
Memory Size：1Mbit
Memory Organization：128K x 8
Memory Interface：SPI
Clock Frequency：104 MHz
Write Cycle Time - Word, Page：800µs
Voltage - Supply：2.3V ~ 3.6V
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：8-UFDFN Exposed Pad
Supplier Device Package：8-USON (2x3)
Access Time：-
Grade：-
Qualification：-

Memory IC datasheet and documents for W25X10CLUXIG TR

W25X10CLUXIG TR

Memory IC Overview

The W25X10CLUXIG TR is a 1M-bit (128K x 8) Serial NOR Flash memory from Winbond, housed in an 8-pad USON 2x3-mm package. It operates on a single 2.3V to 3.6V supply with active current consumption of 1mA and power-down current of 1µA. The device supports SPI clock frequencies up to 104MHz, enabling data transfer rates up to 208Mbps via Dual I/O mode. It features uniform 4KB sectors, 32KB blocks, and 64KB blocks for flexible erasure.

Memory IC Feature Summary

Supports standard SPI as well as high-performance Dual Output and Dual I/O modes for efficient code execution.
Features programmable write protection with hardware (/WP pin) and software control for top or bottom array segments.
Includes a Hold function to pause operations while maintaining selected state, useful for shared bus environments.
Provides true Execute In Place (XIP) capability through continuous read mode with minimal instruction overhead.

Memory IC Applications

Code download applications requiring direct execution from the flash memory.
Storage of voice, text, and parameter data in space-constrained systems.
Systems with limited pins and power requirements needing low-power non-volatile storage.

Memory IC Procurement Notes

Verify the specific suffix 'UXIG' against the manufacturer's official ordering guide to confirm package type, tape/reel specifications, and environmental compliance status. Ensure the component revision matches the design requirements, as electrical characteristics may vary between revisions. Cross-reference the part number with the latest datasheet to confirm availability and any potential obsolescence notices.

Memory IC Selection Notes

Select this component when system constraints require a small footprint and low voltage operation. The USON package is suitable for dense PCB layouts. Consider the Dual I/O interface if higher throughput is needed compared to standard SPI. Verify that the 4KB sector size aligns with the application's data management granularity needs.

Memory IC Part Context

This part belongs to the W25X10CL series of 1M-bit Serial Flash memories. It shares functional similarities with other members of the 25X family but differs in capacity and specific package options. The USON variant offers a smaller physical profile compared to the SOIC versions within the same series.
