W2F15C2228AT1A

Overview

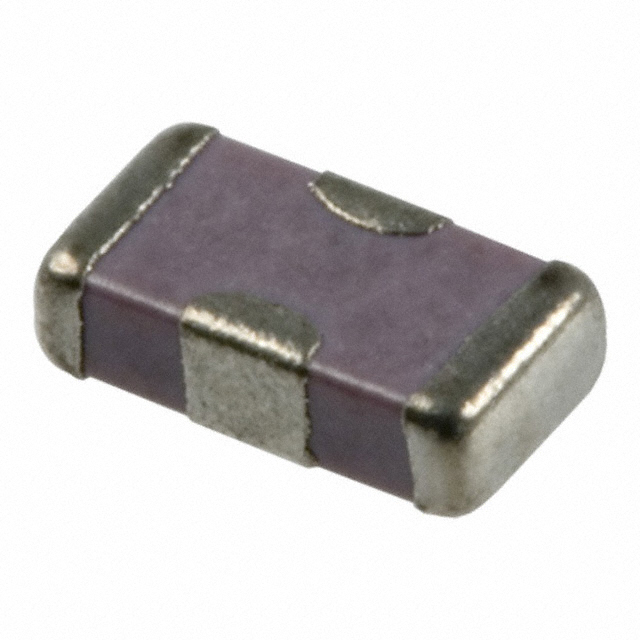

The W2F15C2228AT1A is a surface-mount feed-through capacitor from the KYOCERA AVX W2F series. It features a capacitance of 2200 pF with an X7R dielectric and a DC voltage rating of 50 VDC. The component utilizes a 0805 (2012 metric) package with four terminals, measuring 2.01 mm in length, 1.25 mm in width, and 1.14 mm in height. It supports a current rating of 300 mA and has a maximum DC resistance of 600 mOhms. The tolerance range is -20% to +50%, and it operates within a temperature range of -55°C to +125°C.

Feature Summary

• Provides electromagnetic interference suppression through integrated feed-through filtering architecture.

Applications

• Smart meter applications
• Alternate energy applications

Procurement Notes

Verify the specific suffix 'T1A' against official datasheets to confirm packaging configuration, as variations may exist. Ensure compatibility with RoHS3 standards if required by the target assembly process. Cross-reference terminal dimensions for PCB footprint accuracy prior to procurement.

Selection Notes

Select this component when a compact 0805 form factor is required for high-frequency noise attenuation. The X7R dielectric offers stable performance across the specified industrial temperature range. Consider the 300 mA current rating and low DCR for power integrity in sensitive signal lines.

Part Context

This part belongs to the W2F series of single-layer ceramic feed-through capacitors designed for surface mount technology. It is distinct from the W3F series, which utilizes a larger 1206 package while maintaining similar electrical characteristics such as capacitance and voltage ratings.

Replacement Considerations

W2F15C2228AT1F is a parameter-equivalent alternative within the same series.
