Product Detailed Parameters
- Description：CAP FEEDTHRU 0.022UF 50V 0805
- Series：W2F
- Mfr：KYOCERA AVX
- Package：Tape & Reel (TR),Cut Tape (CT)
- Voltage - Rated：50V
- Current：300 mA
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：Surface Mount
- Package / Case：0805 (2012 Metric), 4 PC Pad
- Size / Dimension：0.079" L x 0.049" W (2.01mm x 1.25mm)
- Capacitance：0.022 µF
- Tolerance：-20%, +50%
- DC Resistance (DCR) (Max)：600mOhm
- Insertion Loss：-
- Temperature Coefficient：X7R
- Ratings：-
- Height (Max)：0.045" (1.14mm)
- Thread Size：-
Download product information
Overview

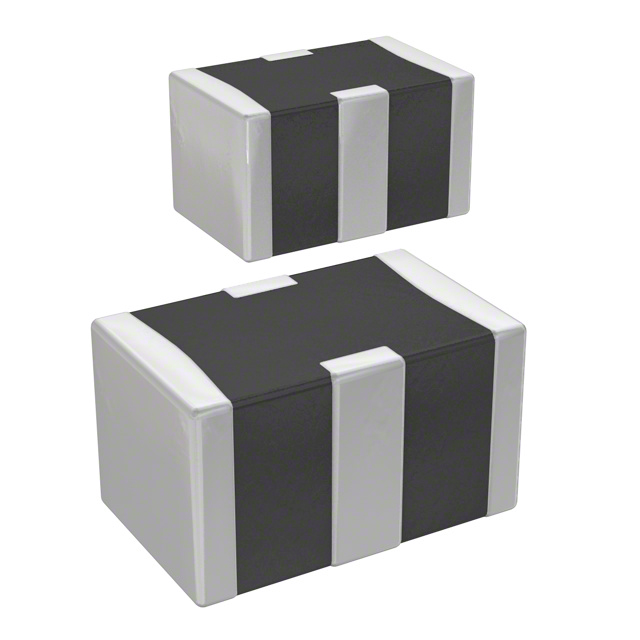

The KYOCERA AVX W2F15C2238AT1F is a surface-mount feedthrough capacitor in the W2F series. It features a capacitance of 0.022 µF with a tolerance of -20%, +50% and an X7R dielectric. Rated for 50 V DC, it supports a current rating of 300 mA and has a maximum DC resistance of 600 mOhms. The component operates within a temperature range of -55°C to +125°C. Packaged in a 0805 (2012 Metric) footprint with four PCB pads, it covers a frequency range from 0 Hz to 5 GHz and maintains an insulation resistance of 1 GOhm.
Feature Summary
- Integrates feedthrough filtering functionality within a compact surface-mount package
- Provides high-current handling capability suitable for power line applications
- Utilizes X7R dielectric material for stable performance across wide temperature ranges
Applications
- Surface Mount FeedThru Filters Components for Alternate Energy Applications
- Component Solutions for Smart Meter Applications
Procurement Notes
Verify the specific ordering suffix against official datasheets to confirm exact packaging and termination specifications. Confirm RoHS3 compliance status and moisture sensitivity level requirements prior to integration into manufacturing processes. Ensure compatibility with standard reflow soldering profiles defined for the W2F series components.
Selection Notes
Select this component when space-constrained designs require integrated EMI suppression on power lines. The 0805 footprint offers a balance between current handling capacity and board area efficiency. Consider the 300 mA rating and low DCR for applications requiring minimal voltage drop across the filter element.
Part Context
This part belongs to the W2F series of surface-mount feedthrough capacitors manufactured by KYOCERA AVX. These components are designed to replace traditional discrete filter assemblies, offering simplified PCB layout and improved high-frequency noise attenuation in compact electronic systems.
Replacement Considerations
W2F15C2238AT1A is listed as a parameter-equivalent substitute.
