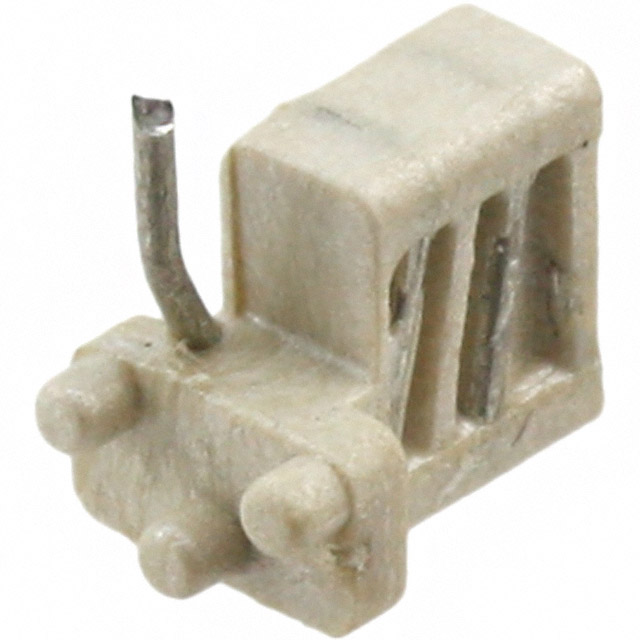

W3108

$1.22

Description：RF ANT 2.4GHZ HELICAL SOLDER SMD
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:6dd12d7d4154 Category: RF Antennas Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

W3108 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is RF ANT 2.4GHZ HELICAL SOLDER SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for W3108

Description：RF ANT 2.4GHZ HELICAL SOLDER SMD
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：-
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.483GHz
Antenna Type：Helical
Number of Bands：1
VSWR：-
Return Loss：-8dB
Gain：1.5dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.217" (5.50mm)
Applications：-
Power - Max：-
