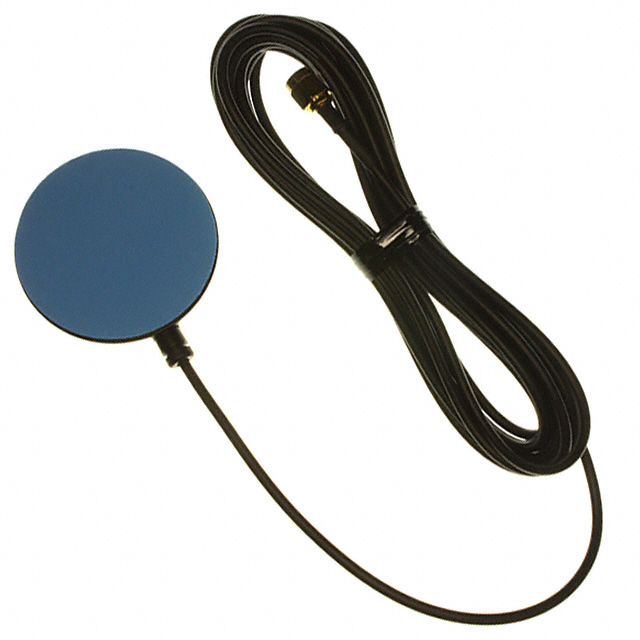

W350DT-110-AM-AGDPU is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 892MHZ/1.9GHZ PUCK SMA ML. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for W350DT-110-AM-AGDPU
- Description：RF ANT 892MHZ/1.9GHZ PUCK SMA ML
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：892MHz, 1.9GHz
- Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
- Antenna Type：Puck
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：1dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.339" (8.60mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for W350DT-110-AM-AGDPU
Antennas RF Overview
The Nearson Inc. W350DT-110-AM-AGDPU is a dual-band puck-style RF antenna designed for mobile communication applications. It operates across two primary frequency bands: 824MHz to 960MHz and 1.71GHz to 2.17GHz, covering AMPS, GSM, DCS, PCS, and UMTS standards. The unit features a 1dBi gain and utilizes an SMA male connector interface. It employs adhesive mounting for secure installation.
Antennas RF Feature Summary
- Dual-band operation supporting multiple cellular standards including AMPS, GSM, DCS, PCS, and UMTS
- Puck form factor with integrated adhesive backing for direct surface mounting
- Standard SMA male connector interface for reliable RF transmission
Antennas RF Applications
- Mobile phone base station installations
- GSM network infrastructure equipment
- UMTS/3G wireless communication systems
- PCS and DCS band signal coverage enhancement
Antennas RF Procurement Notes
Verify the specific datasheet version from Nearson Inc. or authorized distributors to confirm mechanical dimensions and impedance specifications. Ensure the SMA male connector compatibility matches your existing RF cable assemblies. Confirm that the adhesive type meets the environmental requirements of the intended deployment location.
Antennas RF Selection Notes
Select this component when dual-band coverage for legacy and modern cellular standards is required in a compact puck format. The 1dBi gain is suitable for general coverage scenarios rather than high-gain directional needs. Verify that the operating frequency ranges align precisely with local regulatory spectrum allocations for AMPS, GSM, and UMTS services.
Antennas RF Part Context
This model belongs to the Nearson Inc. RF antenna portfolio, specifically categorized as a puck antenna. It is engineered for versatile mobile communication environments requiring broad band support. The design prioritizes ease of installation through adhesive mounting while maintaining standard connectivity via the SMA interface.
Antennas RF Replacement Considerations
Consult official Nearson Inc. documentation for verified substitute part numbers. Cross-reference frequency ranges and connector types carefully. Generic replacements may not support the full AMPS/GSM/DCS/PCS/UMTS band combination specified for this model.
