W3P35X8F04-U150D3B0T

Antennas RF Overview

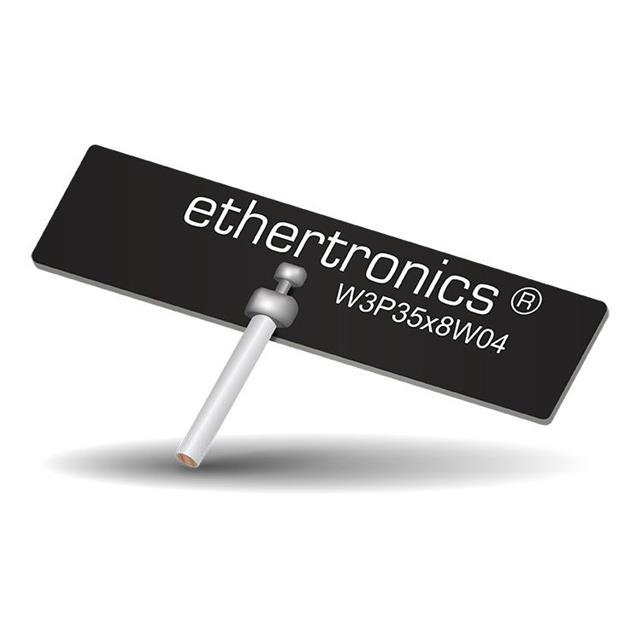

The W3P35X8F04-U150D3B0T is an embedded dual-band antenna assembly manufactured by KYOCERA AVX. It supports Wi-Fi, Bluetooth, BLE, WLAN, Zigbee, Thread, and ANT protocols across 2.4 GHz and 5 GHz frequency bands. The unit features a 150 mm cable terminated with an MHF connector. Physical dimensions are 35.2 x 8.5 x 0.40 mm. The system impedance is 50 ohms. The component utilizes adhesive mounting for secure integration into electronic devices.

Antennas RF Feature Summary

• Dual-band operation supporting 2.4 GHz and 5 GHz wireless standards
• Integrated 150 mm cable with MHF connector interface
• Compact PCB/FPC form factor designed for embedded applications

Antennas RF Applications

• Smartphone and tablet PC connectivity modules
• Wearable device wireless communication systems
• Consumer equipment including PCs and gaming consoles
• Automotive infotainment and safety equipment

Antennas RF Procurement Notes

Verify the specific ordering suffix against the official datasheet to ensure correct cable length and connector type. Confirm RoHS compliance status directly with the manufacturer or authorized distributor. Check for current production status as components may be subject to obsolescence notices. Request updated documentation to validate mechanical tolerances and electrical performance specifications prior to procurement.

Antennas RF Selection Notes

Select this component when a compact dual-band solution is required for space-constrained designs. Ensure the host circuitry supports the 50-ohm impedance standard. Verify that the MHF connector mating requirements align with the system board layout. Consider the adhesive mounting method for installation constraints. Validate compatibility with all target wireless protocols including Wi-Fi 6E/7 if applicable.

Antennas RF Part Context

This part belongs to the W3 family of antennas from KYOCERA AVX. The series includes various embedded solutions for Wi-Fi and Bluetooth applications. These components are engineered for high-volume consumer electronics manufacturing. The family offers different configurations for PCB and FPC implementations. They are designed to meet strict size limitations in modern portable devices.

Antennas RF Replacement Considerations

Consult the official datasheet for direct substitute part numbers within the W3 series. Verify mechanical footprint compatibility before substituting. Ensure electrical parameters match the original design requirements. Contact the manufacturer for validated alternative components if the primary part is unavailable.
