W601DT-110-AM-AGDP is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 892MHZ/1.9GHZ FLAT BAR. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for W601DT-110-AM-AGDP
- Description：RF ANT 892MHZ/1.9GHZ FLAT BAR
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：892MHz, 1.9GHz
- Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
- Antenna Type：Flat Bar
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.516" (13.10mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for W601DT-110-AM-AGDP
Antennas RF Overview

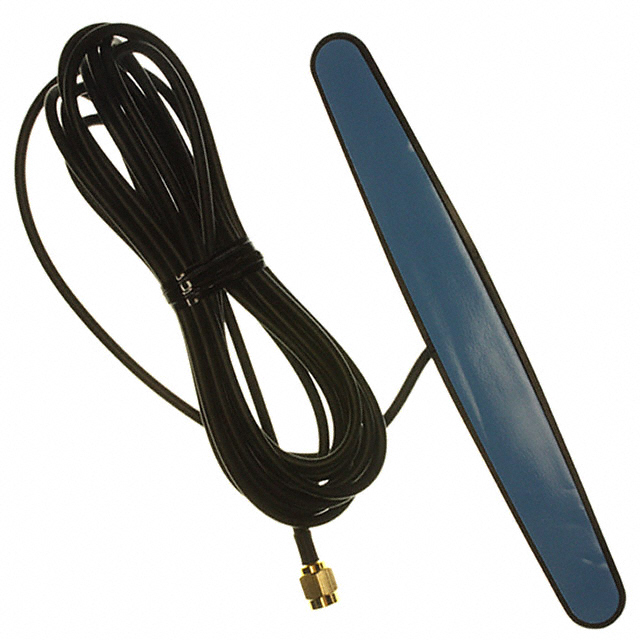

The W601DT-110-AM-AGDP is a flat bar RF antenna manufactured by Nearson Inc. It operates across two frequency bands: 824 MHz to 960 MHz and 1.71 GHz to 1.99 GHz, covering GSM/DCS and PCS ranges. The component features a 2 dBi gain rating and utilizes an SMA male connector interface. It is designed with an adhesive backing for secure mounting on surfaces.
Antennas RF Feature Summary
- Flat bar structural design suitable for low-profile integration
- Dual-band operation supporting GSM/DCS and PCS frequency ranges
- Adhesive mounting mechanism for direct surface attachment
Antennas RF Applications
- GSM mobile communication devices
- DCS network equipment
- PCS wireless systems
Antennas RF Procurement Notes
Verify the specific datasheet version provided by Nearson Inc. or authorized distributors to confirm mechanical dimensions and adhesive specifications. Ensure the SMA male connector type matches the receiving device interface requirements before finalizing procurement orders.
Antennas RF Selection Notes
Select this model when a low-profile, dual-band solution is required for GSM and PCS applications. The adhesive mounting feature simplifies installation in space-constrained environments where traditional mounting hardware is impractical.
Antennas RF Part Context
This component belongs to the Nearson Inc. RF Antenna product line, specifically categorized as passive components for RF/IF and RFID applications. It is part of a series offering various antenna configurations for different frequency bands and mounting styles.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer channels for cross-reference information if alternative sourcing is necessary.
