W765FL-100-RMM-AGDP

Antennas RF Overview

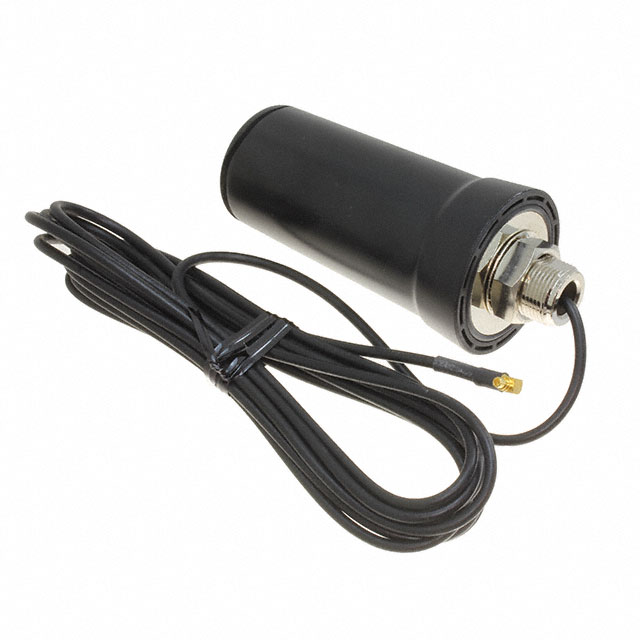

The W765FL-100-RMM-AGDP is a low-profile dome RF antenna manufactured by Nearson Inc. It operates across two frequency bands: 824MHz to 960MHz and 1.71GHz to 1.99GHz, with center frequencies at 892MHz and 1.85GHz respectively. The component features a 2dBi gain and utilizes an MMCX connector for panel mounting. Its maximum height is 2.835 inches (72.00mm).

Antennas RF Feature Summary

• Low-profile dome design suitable for space-constrained installations.
• Dual-band operation covering UHF ranges for general purpose applications.
• Panel mount configuration with integrated flylead connectivity.

Antennas RF Applications

• General purpose RF communication systems requiring dual-band support.
• Vehicle or infrastructure mounted antenna setups.
• Industrial IoT devices utilizing UHF frequency bands.

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against system specifications before ordering. Confirm RoHS compliance status if required by regulatory standards. Ensure the panel mounting hole dimensions align with the antenna base. Cross-reference the part number suffixes to confirm exact accessory inclusions such as flyleads or mounting hardware.

Antennas RF Selection Notes

Select this model when dual-band coverage between 824-960MHz and 1.71-1.99GHz is necessary. The 2dBi gain is adequate for short-range general purpose links. Consider the 72mm height constraint for installation clearance. Verify that the MMCX interface matches existing equipment ports. Evaluate environmental sealing needs for outdoor deployment scenarios.

Antennas RF Part Context

This component belongs to the W765FL series of low-profile dome antennas from Nearson Inc. The series includes variants with different mounting styles and connector options. The W765FL-100-RMM-AGDP specifically denotes the version with MMCX connector and flylead configuration. It is designed for reliable performance in mobile and fixed RF applications.

Antennas RF Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Compare electrical parameters such as frequency range, gain, and connector type when evaluating alternatives. Ensure mechanical dimensions fit existing mounting points. Verify impedance matching and VSWR characteristics of potential replacements.
