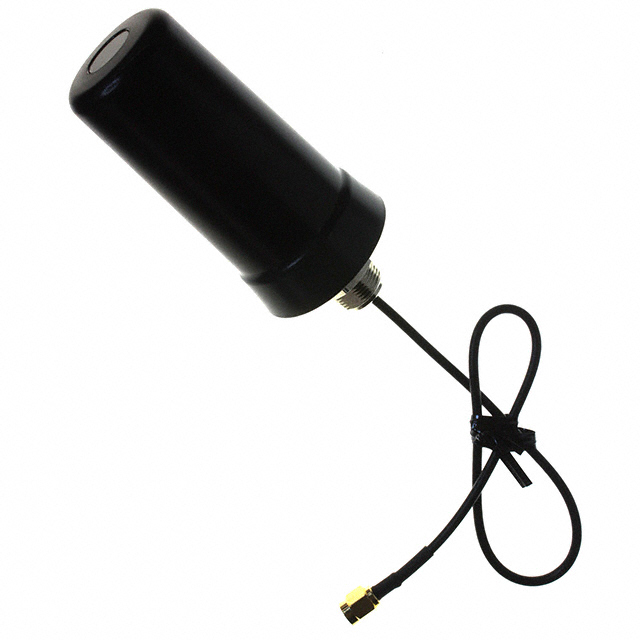

W765FL-12-AM-AGDP is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 850MHZ/900MHZ DOME PNL MT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for W765FL-12-AM-AGDP
- Description：RF ANT 850MHZ/900MHZ DOME PNL MT
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：850MHz, 900MHz, 1.8GHz, 1.9GHz
- Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
- Antenna Type：Dome
- Number of Bands：4
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：Cable - 305mm
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：2.835" (72.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for W765FL-12-AM-AGDP
Antennas RF Overview
The W765FL-12-AM-AGDP is a fixed-frequency dome RF antenna manufactured by Nearson Inc. It operates across two frequency bands: 824MHz to 960MHz and 1.71GHz to 2.17GHz. The component features a gain of 2dBi and an impedance of 50Ω. It utilizes an SMA male connector for panel mounting. The maximum height is 2.83 inches (72mm). The operating temperature range is specified from -20°C to +65°C.
Antennas RF Feature Summary
- Dual-band operation supporting cellular and PCS frequencies
- Dome form factor with panel mount configuration
- Fixed whip design with SMA male interface
Antennas RF Applications
- Mobile communication base stations
- Wireless data transmission systems
- Industrial telemetry equipment
Antennas RF Procurement Notes
Verify the specific model suffix against official Nearson documentation to ensure correct connector type and polarity. Confirm frequency band requirements match the 824-960MHz and 1.71-2.17GHz specifications. Check mounting hardware compatibility for panel installation. Ensure environmental ratings meet operational temperature needs.
Antennas RF Selection Notes
Select this model when dual-band coverage in the specified ranges is required. Consider the dome shape for aerodynamic or aesthetic integration. Verify that the SMA male connector aligns with existing cable assemblies. Evaluate the 2dBi gain against system link budget requirements. Assess physical dimensions for available mounting space.
Antennas RF Part Context
This part belongs to the W765FL series of RF antennas from Nearson Inc. The series includes variants with different connector types and lengths. The W765FL designation indicates a dome-style antenna. Other models in the family may offer different frequency ranges or mounting options.
Antennas RF Replacement Considerations
Direct substitutes are not explicitly confirmed in public datasheets. Compatible alternatives must match the 50Ω impedance, SMA male connector, and dual-band frequency coverage. Verify mechanical dimensions and mounting hole patterns for interchangeability.
