W765FL-36-AM-AGDP

Antennas RF Overview

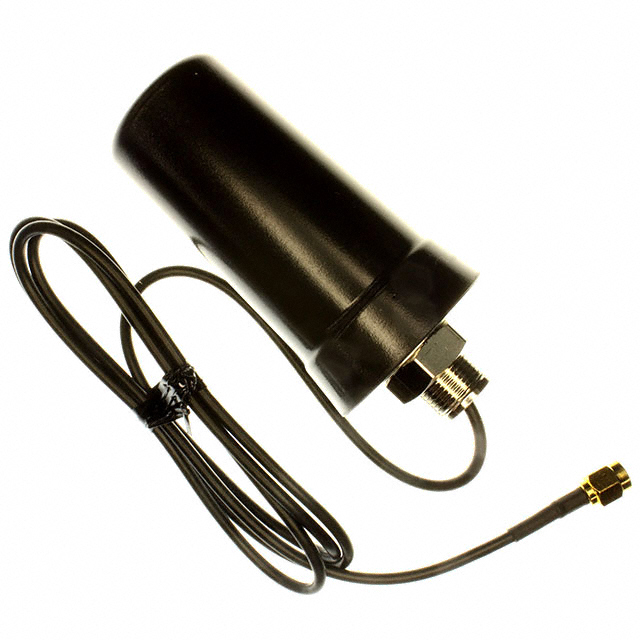

The W765FL-36-AM-AGDP is a dome-style RF antenna manufactured by Nearson Inc., designed for panel mounting applications. It operates within the 850 MHz and 900 MHz frequency bands, supporting GSM and related cellular communication standards. The component features an SMA male connector for secure interface connection. Its physical dimensions include a maximum height of 2.835 inches (72.00 mm), providing a low-profile form factor suitable for integration into various enclosure designs. The unit is constructed to be RoHS compliant, ensuring adherence to environmental standards for restricted hazardous substances in electronic equipment.

Antennas RF Feature Summary

• Dome-shaped design optimized for omnidirectional radiation patterns
• Panel mount configuration with SMA male termination
• Dual-band operation covering 850 MHz and 900 MHz frequencies
• RoHS compliant construction for environmental safety

Antennas RF Applications

• GSM cellular base station installations
• Industrial wireless communication systems
• Remote monitoring and telemetry units

Antennas RF Procurement Notes

Verify the specific SMA male connector gender and panel cutout requirements against system design specifications before procurement. Confirm that the 850/900 MHz operational range aligns with local regulatory frequency allocations for the intended deployment region. Ensure the panel mount style matches the mechanical constraints of the target enclosure. Check for updated RoHS compliance documentation if required by specific supply chain audits.

Antennas RF Selection Notes

Select this model when a compact, dome-style antenna is required for 850/900 MHz coverage. The SMA male interface dictates compatibility with mating cables or devices featuring female connectors. Consider the 72.00 mm height constraint for clearance within the installation environment. This component is suitable for fixed installations where panel mounting is preferred over magnetic or adhesive bases.

Antennas RF Part Context

This part belongs to the Nearson W765FL series of RF antennas, which are characterized by their dome geometry and panel-mount versatility. The series typically supports common cellular frequency bands, offering reliable performance for industrial and commercial wireless applications. The AGDP suffix likely denotes specific material or finish variations within the product line, though functional parameters remain consistent across the series.
