W771FL2-120-AM

Antennas RF Overview

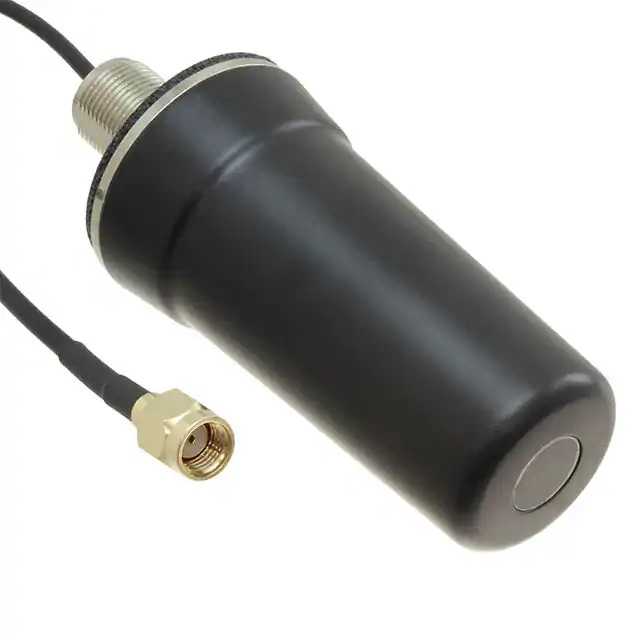

The Nearson Inc. W771FL2-120-AM is an active LTE dome antenna designed for WiFi applications. It operates within the UHF frequency groups of 300MHz to 1GHz and 1GHz to 2GHz, with specific center frequencies at 829MHz and 2.205GHz. The unit features a 120-inch length and utilizes an SMA male connector. It supports a maximum power of 10W and provides a gain of 2dBi across frequency ranges of 698MHz~960MHz and 1.71GHz~2.7GHz.

Antennas RF Feature Summary

• Dome antenna design suitable for outdoor or fixed installations
• Dual-band operation covering LTE and WiFi standards
• SMA male connector interface for cable attachment

Antennas RF Applications

• LTE network infrastructure deployments
• WiFi connectivity solutions requiring wide coverage
• Fixed wireless access points

Antennas RF Procurement Notes

Verify that the SMA male connector matches your system's mating requirements. Confirm the 120-inch physical dimensions fit the installation space. Ensure the operating temperature range aligns with environmental conditions. Check RoHS compliance if required by project specifications. Validate frequency support against current network band allocations.

Antennas RF Selection Notes

Choose this model when a high-gain dome antenna is needed for LTE and WiFi bands. Consider the 120-inch length for mounting constraints. The SMA male interface requires compatible cabling. Verify power handling capabilities against transmitter output. Ensure the 2dBi gain meets signal strength requirements for the target area.

Antennas RF Part Context

This component belongs to Nearson Inc.'s RF antenna series, specifically categorized under LTE dome antennas. It is distinct from lower-profile variants like the W765FL series. The part is actively manufactured and available in bulk packaging. It serves as a specialized solution for wideband communication needs.

Antennas RF Replacement Considerations

Direct substitutes include other Nearson LTE dome antennas such as the W771FL2-36-AM, though physical dimensions differ. Verify connector type and frequency overlap before swapping. No alternative manufacturer part numbers are publicly confirmed for direct replacement.
