W771FL2-36-AM

Antennas RF Overview

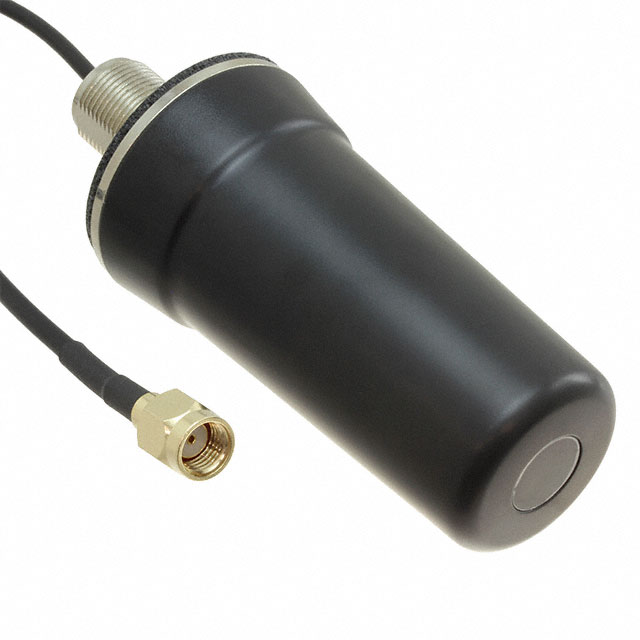

The Nearson W771FL2-36-AM is a dual-band LTE dome antenna designed for panel mounting. It features an SMA male connector and covers frequency ranges of 698-960 MHz and 1.71-2.7 GHz, with center frequencies at 829 MHz and 2.205 GHz. The unit has a maximum height of 77.90 mm (3.067 inches). It is packaged in bulk and complies with RoHS standards.

Antennas RF Feature Summary

• Dual-band cellular coverage supporting LTE applications
• Dome form factor with SMA male connector
• Panel mount installation type

Antennas RF Applications

• LTE cellular communication systems
• Mobile phone infrastructure
• Panel-mounted RF installations

Antennas RF Procurement Notes

Verify the specific part number suffix against official Nearson documentation to ensure correct frequency band alignment. Confirm connector gender and mounting style requirements prior to ordering. Check for RoHS compliance status if required by project specifications. Ensure bulk packaging suitability for assembly processes.

Antennas RF Selection Notes

Select this model when dual-band LTE performance is required in a compact dome profile. The SMA male interface suits standard coaxial cable connections. Verify spatial constraints against the 77.90 mm height specification. Ensure the application environment supports panel mounting configurations.

Antennas RF Part Context

This component belongs to the Nearson W771FL2 series of RF antennas. The series includes variants with different gain levels and connector options. The W771FL2-36-AM specifically denotes the 36-inch equivalent gain variant with SMA male termination, distinct from other series members like the 120-AM version.

Antennas RF Replacement Considerations

Direct substitutes include the W771FL2-120-AM, which shares the same physical form factor and connector type but offers different gain characteristics. Verify electrical parameter compatibility before substitution.
