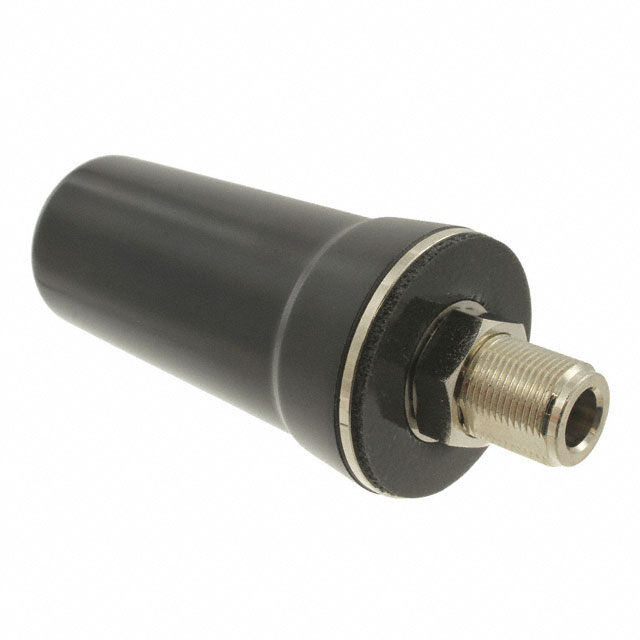

W771N-AGDPU is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT DOME N MALE PAN MT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for W771N-AGDPU
- Description：RF ANT DOME N MALE PAN MT
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：Wide Band
- Frequency (Center/Band)：-
- Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
- Antenna Type：Dome
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：2dBi, 3dBi
- Features：-
- Termination：N Type Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：3.067" (77.90mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for W771N-AGDPU
Antennas RF Overview
The W771N-AGDPU is a dome RF antenna manufactured by Nearson Inc., designed for panel mounting applications. It features an N-type male connector and operates across two distinct frequency bands: 698MHz to 960MHz and 1.71GHz to 2.7GHz. The antenna provides a gain of 2dBi in the lower band and 3dBi in the upper band, with a maximum Voltage Standing Wave Ratio (VSWR) of 2. Its physical dimensions include a maximum height of 3.067 inches (77.90mm). The component is RoHS compliant and classified under wideband frequency groups.
Antennas RF Feature Summary
- Dual-band operation covering sub-GHz and cellular frequency ranges
- Low-profile dome design optimized for panel installation
- Standardized N-type male connector interface for secure attachment
Antennas RF Applications
- Wideband communication systems requiring dual-frequency coverage
- Panel-mounted base station or repeater installations
- Industrial IoT gateways operating in licensed and unlicensed spectrum
Antennas RF Procurement Notes
Verify the specific datasheet version from Nearson Inc. to confirm mechanical tolerances and environmental ratings prior to integration. Ensure that the N-type male connector compatibility matches the receiving equipment interface. Confirm RoHS compliance status if required by local regulatory standards for the deployment region.
Antennas RF Selection Notes
Select this model when a low-profile dome antenna is required for fixed panel mounting. The dual-band capability supports both narrowband sub-GHz and wider bandwidth cellular frequencies. Consider the 2dBi to 3dBi gain profile against system link budget requirements. The N-type connector dictates cable selection and mating hardware specifications for the final assembly.
Antennas RF Part Context
This component belongs to the Nearson W771 series of low-profile antennas. The W771N-AGDPU variant specifically denotes the dome style with an N-type male connector and panel mount configuration. It serves as a specialized RF transducer within wireless infrastructure, converting guided waves to free-space radiation across specified broadband intervals.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical footprint and electrical parameters against alternative models from Nearson or other manufacturers before substitution.
