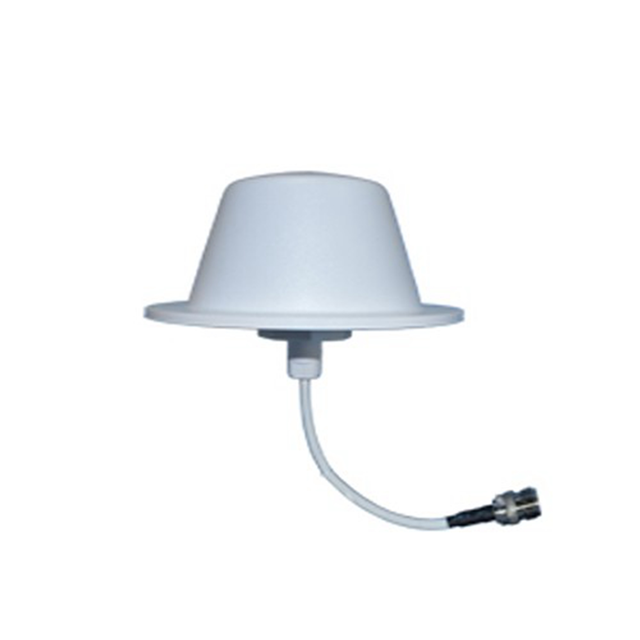

WAC24033 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Turmode. Its product description is CEILING WIFI ANTENNA FOR 2.4GHZ. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for WAC24033
- Description：CEILING WIFI ANTENNA FOR 2.4GHZ
- Series：-
- Mfr：Turmode
- Package：Bulk
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4415GHz
- Frequency Range：2.4GHz ~ 2.483GHz
- Antenna Type：Dome
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：3dBi
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Ceiling Mount
- Height (Max)：3.350" (85.09mm)
- Applications：802.11b, Bluetooth, ISM
- Power - Max：-
Antennas RF datasheet and documents for WAC24033
Antennas RF Overview
The Turmode WAC24033 is a ceiling-mounted WiFi antenna designed for 2.4 GHz ISM frequency bands, supporting 802.11b/g/n protocols and Bluetooth WLAN systems. It features an omni-directional radiation pattern with low VSWR to enhance signal strength and range for wireless devices. The unit operates within the standard 2.4 GHz bandwidth, providing broad-band coverage suitable for indoor and outdoor applications where extended network reach is required.
Antennas RF Feature Summary
- Ceiling mount design for optimized spatial coverage
- Omni-directional radiation pattern for uniform signal distribution
- Low VSWR characteristics for efficient power transfer
- Broad-band operation across 2.4 GHz ISM frequencies
Antennas RF Applications
- Wireless routers and access points
- WiFi adapters and bridges
- Bluetooth WLAN systems
- Indoor and outdoor network expansion
Antennas RF Procurement Notes
Verify the specific connector type and cable length requirements against your device specifications before ordering. Confirm that the mounting hardware included is compatible with your ceiling material. Ensure the operating environment meets the antenna's environmental ratings if used outdoors. Cross-reference the manufacturer part number WAC24033 with supplier listings to ensure authenticity and correct revision levels.
Antennas RF Selection Notes
Select this model when a ceiling-mounted solution is preferred over wall or desk mounts to maximize horizontal coverage area. Choose this antenna for environments requiring stable omni-directional performance at 2.4 GHz. Consider this option for installations where aesthetic integration into the ceiling is necessary while maintaining signal integrity for 802.11b/g/n networks.
Antennas RF Part Context
The WAC24033 belongs to Turmode's line of networking antennas focused on extending WiFi coverage. It complements other Turmode products like directional Yagi and parabolic antennas by offering a wide-area coverage alternative. This component serves as a passive RF interface between wireless equipment and the air interface, specifically tailored for 2.4 GHz band operations in both commercial and residential settings.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should verify compatibility based on connector type, frequency range, and gain specifications when selecting alternatives from other manufacturers.
