WAG24021

Description：GRID PARABOLIC WIFI ANTENNA FOR
Series：-
Mfr：Turmode
Package：Bulk

SKU:d70f4fad9ac2 Category: RF Antennas Brand: Turmode

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

WAG24021 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Turmode. Its product description is GRID PARABOLIC WIFI ANTENNA FOR. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for WAG24021

Description：GRID PARABOLIC WIFI ANTENNA FOR
Series：-
Mfr：Turmode
Package：Bulk
RF Family/Standard：General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Parabolic Grid
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：27dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：19.690" (500.13mm)
Applications：ISM, UNII, WLAN
Power - Max：100 W

Antennas RF datasheet and documents for WAG24021

WAG24021

Antennas RF Overview

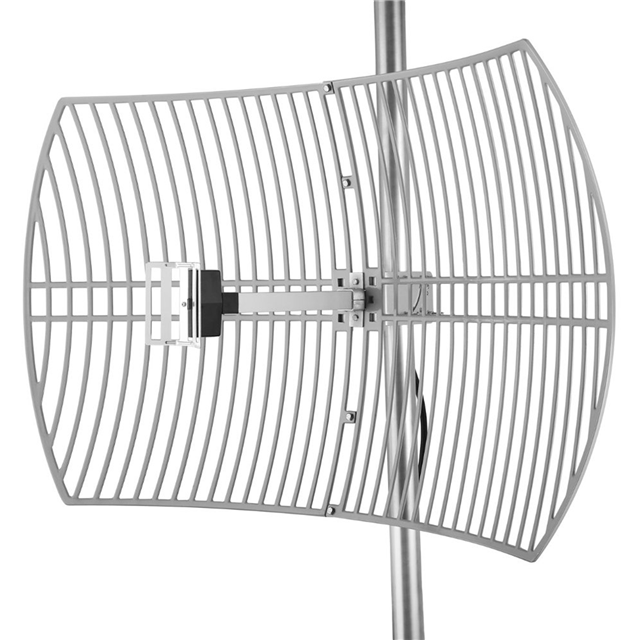

The Turmode WAG24021 is a 2.4 GHz parabolic grid WiFi antenna designed for 802.11b/g/n devices. It features a high gain of 27 dB and an N-Female connector interface. The unit operates within the standard 2.4 GHz ISM band, providing enhanced signal strength and range for outdoor applications. Constructed with durable materials suitable for external mounting, it supports point-to-point or point-to-multipoint networking configurations by focusing radio frequency energy in a specific direction.

Antennas RF Feature Summary

High-gain directional radiation pattern for extended transmission distance
Parabolic grid design reduces wind load while maintaining structural integrity
Optimized for 2.4 GHz wireless protocol compatibility
Robust construction intended for reliable outdoor environmental operation

Antennas RF Applications

Outdoor wireless network bridge links
Long-range access point signal extension
CCTV camera wireless connectivity enhancement
Industrial IoT device remote data transmission

Antennas RF Procurement Notes

Verify that the required connector type matches the N-Female specification documented for this model. Confirm operational frequency alignment with existing 2.4 GHz infrastructure to ensure compatibility. Check physical dimensions against available mounting space requirements. Ensure environmental ratings meet local weather conditions for permanent outdoor installation.

Antennas RF Selection Notes

Select this model when directional signal focus is required rather than omnidirectional coverage. Consider the 27 dB gain specification for long-distance link budgets. Evaluate mounting hardware availability for pole or mast installation. Assess cable length requirements between the antenna and the radio device to minimize signal loss.

Antennas RF Part Context

This component belongs to the Turmode WiFi antenna product line, specifically engineered for 2.4 GHz band operations. It serves as a passive RF accessory that interfaces with wireless routers, adapters, and access points. The parabolic grid form factor distinguishes it from solid dish antennas by offering reduced aerodynamic resistance while maintaining high directivity for network performance optimization.
