WAG58302

Description：GRID PARABOLIC WIFI ANTENNA FOR
Series：-
Mfr：Turmode
Package：Bulk

SKU:a10ccc8eb589 Category: RF Antennas Brand: Turmode

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

WAG58302 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Turmode. Its product description is GRID PARABOLIC WIFI ANTENNA FOR. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for WAG58302

Description：GRID PARABOLIC WIFI ANTENNA FOR
Series：-
Mfr：Turmode
Package：Bulk
RF Family/Standard：-
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：5.7875GHz
Frequency Range：5.725GHz ~ 5.85GHz
Antenna Type：Parabolic Grid
Number of Bands：1
VSWR：-
Return Loss：-
Gain：30dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：15.750" (400.05mm)
Applications：-
Power - Max：-

Antennas RF datasheet and documents for WAG58302

WAG58302

Antennas RF Overview

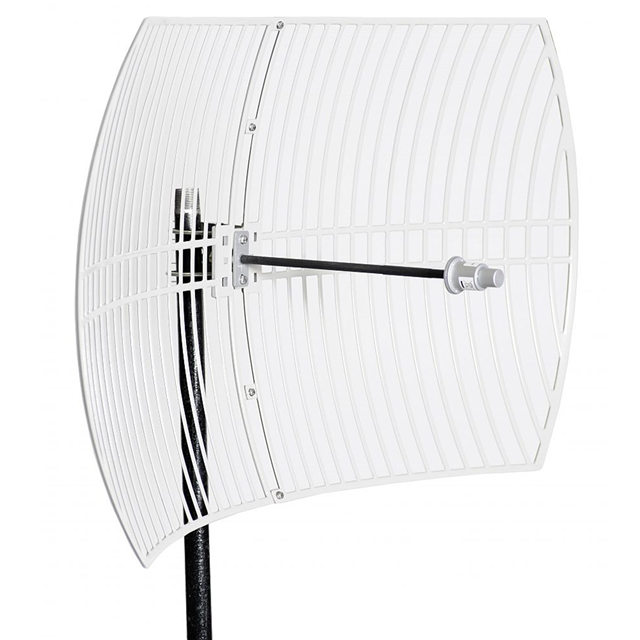

The Turmode WAG58302 is a 5.8GHz grid parabolic antenna designed for outdoor directional WiFi applications. It operates within the frequency range of 5725-5850MHz with a bandwidth of 125MHz. The antenna provides a gain of 30dBi and features an N-Female connector interface.

Antennas RF Feature Summary

High-gain directional radiation pattern suitable for long-range point-to-point links
Grid parabolic structure reduces wind load and signal interference
Outdoor-rated construction for durable environmental performance

Antennas RF Applications

WiFi routers and access points
Wireless bridges and adapters
IP cameras and network repeaters

Antennas RF Procurement Notes

Verify that the N-Female connector matches the device port. Confirm the 5725-5850MHz frequency range aligns with local regulatory requirements for 5.8GHz operations. Ensure mounting hardware supports the antenna's physical dimensions and wind load specifications for outdoor installation safety.

Antennas RF Selection Notes

Select this model when high directivity and long-range coverage are required for 5.8GHz networks. The 30dBi gain makes it suitable for point-to-point or point-to-multipoint configurations where signal focus is critical compared to omnidirectional alternatives.

Antennas RF Part Context

This component belongs to the Turmode outdoor WiFi antenna series, specifically engineered for 5GHz band operations. It complements other Turmode products like the WAO24123 by providing specialized directional solutions for distinct frequency bands and application geometries.
