WAP24184

Antennas RF Overview

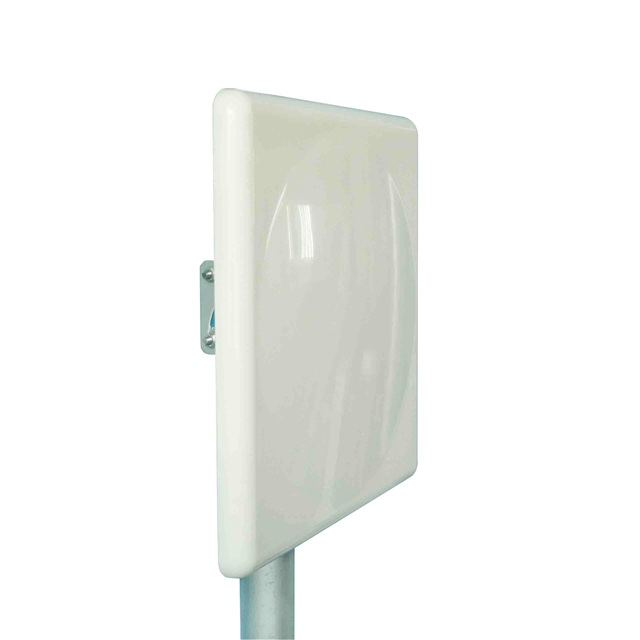

The Turmode WAP24184 is a directional panel WiFi antenna engineered for the 2.4 GHz ISM band, specifically covering the 2400 to 2483 MHz frequency range. It delivers an 18 dBi gain to enhance signal strength and extend operational range for wireless networks. The unit features a medium-range profile suitable for both indoor and outdoor deployment scenarios. Connectivity is established via an SMA male connector interface, ensuring compatibility with standard WiFi routers, access points, and network adapters.

Antennas RF Feature Summary

• Directional radiation pattern optimized for focused signal transmission
• High 18 dBi gain capability for extended wireless coverage
• Dual-environment design supporting indoor and outdoor installation
• Standard SMA male connector for direct device attachment

Antennas RF Applications

• WiFi router signal enhancement
• Wireless access point extension
• Network adapter range improvement

Antennas RF Procurement Notes

Verify that the required connector type matches the SMA male specification listed in the product documentation. Confirm the operating frequency aligns with the 2400-2483 MHz range to ensure compatibility with existing 802.11b/g/n infrastructure. Check environmental ratings if outdoor mounting is planned, as the model supports both indoor and outdoor use cases.

Antennas RF Selection Notes

Select this model when a directional approach is necessary to target specific coverage areas rather than omnidirectional broadcasting. The 18 dBi gain makes it suitable for long-distance links within the 2.4 GHz spectrum. Ensure the host device supports the SMA male interface or utilize appropriate adapters if the equipment utilizes different connector standards.

Antennas RF Part Context

This component belongs to the Turmode WiFi antenna portfolio, which includes various models such as the WAP24183 flat panel and WAY24132 Yagi antennas. These products collectively address diverse wireless networking needs across the 2.4 GHz band, offering different form factors and gain levels to suit specific installation requirements.

Antennas RF Replacement Considerations

The Turmode WAP24183 is a documented alternative within the same product line, sharing identical 2400-2483 MHz frequency and 18 dBi gain specifications. Verify connector compatibility and physical dimensions before substitution.
