WAP59203

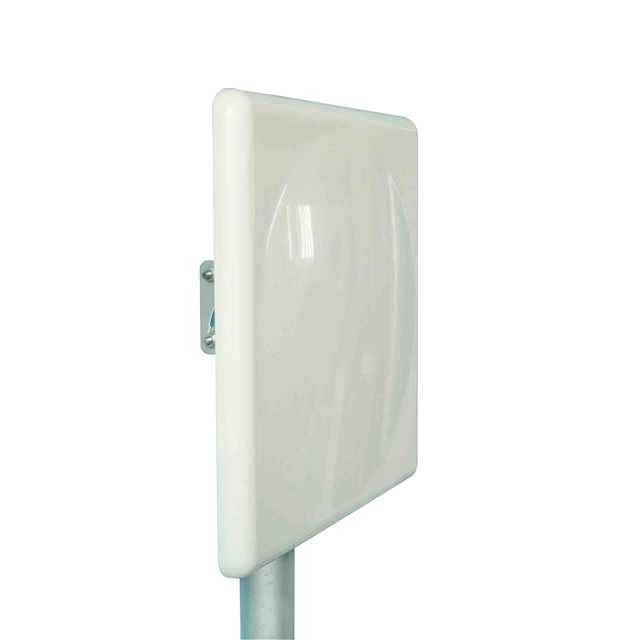

Description：PANEL WIFI ANTENNA FOR 5.8GHZ
Series：-
Mfr：Turmode
Package：Bulk

SKU:fce401868057 Category: RF Antennas Brand: Turmode

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

WAP59203 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Turmode. Its product description is PANEL WIFI ANTENNA FOR 5.8GHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for WAP59203

Description：PANEL WIFI ANTENNA FOR 5.8GHZ
Series：-
Mfr：Turmode
Package：Bulk
RF Family/Standard：-
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：5.5GHz
Frequency Range：5.15GHz ~ 5.85GHz
Antenna Type：Flat Panel
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：23dBi
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：0.788" (20.01mm)
Applications：-
Power - Max：100 W

Antennas RF datasheet and documents for WAP59203

WAP59203

Antennas RF Overview

The Turmode WAP59203 is a directional panel antenna designed for indoor and outdoor deployment. It operates within the 5.15 to 5.85 GHz frequency range, supporting 5.8 GHz 802.11b/g/n Wi-Fi devices. The component provides a gain of 23 dBi with vertical or horizontal polarization options. Its design aims to increase signal strength and extend the operational range of connected wireless equipment.

Antennas RF Feature Summary

Directional panel configuration suitable for both indoor and outdoor environments
Enhances signal strength and extends range for 5.8 GHz Wi-Fi devices
Supports vertical and horizontal polarization modes

Antennas RF Applications

Extending coverage for routers and access points
Improving signal for Wi-Fi adapters
Indoor wireless network expansion
Outdoor point-to-point links

Antennas RF Procurement Notes

Verify that the specific unit matches the 5.8 GHz frequency range and 23 dBi gain specifications. Confirm compatibility with existing 802.11b/g/n infrastructure before integration. Ensure the mounting hardware supports the intended indoor or outdoor installation environment.

Antennas RF Selection Notes

Select this model when high-gain directional coverage is required for 5.8 GHz networks. It is appropriate for scenarios needing extended range rather than omnidirectional distribution. Consider environmental factors if deploying outdoors, as the unit is rated for such conditions.

Antennas RF Part Context

This component belongs to the Turmode networking antenna series. It serves as a specialized accessory for enhancing wireless connectivity in structured environments. The product addresses limitations in standard device antennas by providing focused signal transmission and reception capabilities.
