WAY24132

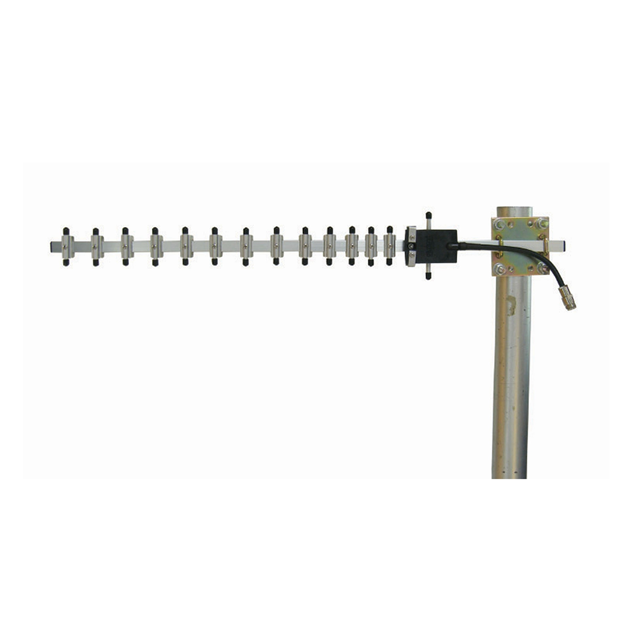

Description：YAGI WIFI ANTENNA FOR 2.4GHZ
Series：-
Mfr：Turmode
Package：Bulk

SKU:eebc93fbfea9 Category: RF Antennas Brand: Turmode

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

WAY24132 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Turmode. Its product description is YAGI WIFI ANTENNA FOR 2.4GHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for WAY24132

Description：YAGI WIFI ANTENNA FOR 2.4GHZ
Series：-
Mfr：Turmode
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4415GHz
Frequency Range：2.4GHz ~ 2.483GHz
Antenna Type：Yagi
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：13dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：1.180" (29.97mm)
Applications：-
Power - Max：-

Antennas RF datasheet and documents for WAY24132

WAY24132

Antennas RF Overview

The Turmode WAY24132 is a Yagi RF antenna designed for the 2.4 GHz ISM band, specifically covering frequencies from 2.400 GHz to 2.4835 GHz. It features a high gain of 13 dBi and utilizes an N-Type female connector for secure attachment. The antenna supports 802.11b/g/n Wi-Fi standards and operates with a maximum input power of 50 W. Its electrical characteristics include a VSWR of less than 1.5:1 and an impedance of 50 Ohms. Constructed with a silver-colored radome, it offers IP67 weatherproofing for outdoor durability.

Antennas RF Feature Summary

Directional Yagi design for focused signal transmission
High gain performance for extended range
IP67 rated weatherproof construction
N-Type female interface

Antennas RF Applications

Outdoor Wi-Fi access points
Wireless bridges
CCTV camera networks
Long-range router connections

Antennas RF Procurement Notes

Verify that the required connector type matches the N-Type female specification on the device port. Confirm environmental ratings are sufficient for the intended installation location, as this model is designed for outdoor use with IP67 protection. Ensure the frequency range aligns with local regulatory requirements for the 2.4 GHz band.

Antennas RF Selection Notes

Select this component when directional gain is required over omnidirectional coverage. The 13 dBi gain makes it suitable for point-to-point links or extending range in open areas. Consider the physical size and wind load implications due to the Yagi structure. Verify compatibility with existing N-Type ports on routers or access points.

Antennas RF Part Context

This part belongs to the Turmode networking antenna series, which includes various models like the WAY24134. These products focus on enhancing wireless signal strength for 2.4 GHz devices. The WAY24132 specifically targets outdoor applications requiring robust weather resistance and directional signal focusing.
