WAY24134

Description：YAGI WIFI ANTENNA FOR 2.4GHZ
Series：-
Mfr：Turmode
Package：Bulk

SKU:45c5b185d666 Category: RF Antennas Brand: Turmode

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

WAY24134 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Turmode. Its product description is YAGI WIFI ANTENNA FOR 2.4GHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for WAY24134

Description：YAGI WIFI ANTENNA FOR 2.4GHZ
Series：-
Mfr：Turmode
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4415GHz
Frequency Range：2.4GHz ~ 2.483GHz
Antenna Type：Yagi
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：15dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：3.150" (80.01mm)
Applications：-
Power - Max：-

Antennas RF datasheet and documents for WAY24134

WAY24134

Antennas RF Overview

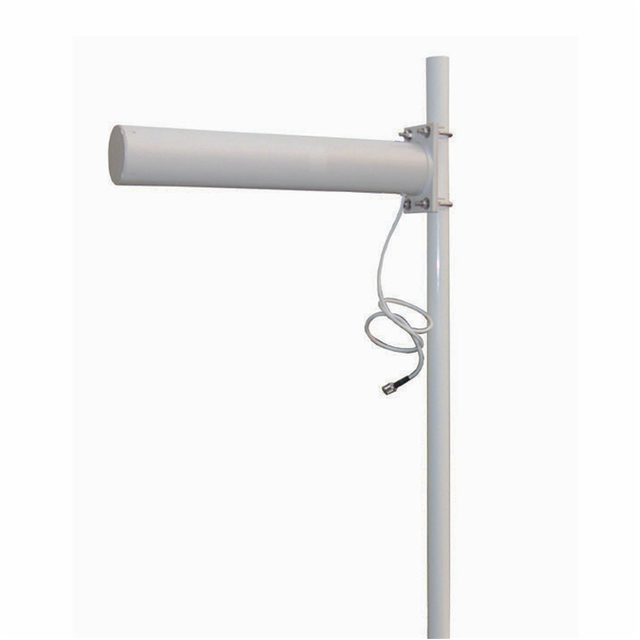

The Turmode WAY24134 is a Yagi-style directional RF antenna engineered for the 2.4 GHz ISM band, specifically supporting IEEE 802.11b/g/n Wi-Fi protocols. It operates within a frequency range of 2400 MHz to 2483 MHz with a bandwidth of 83 MHz. The component provides a nominal gain of 15 dBi to enhance signal strength and transmission range. It features an N-type female connector for secure attachment to compatible devices. Designed for outdoor deployment, the unit includes a bracket mount configuration to facilitate fixed positioning.

Antennas RF Feature Summary

Directional Yagi design for focused signal transmission
High gain output for extended wireless range
Bracket mount structure for stable outdoor installation

Antennas RF Applications

Wireless routers and access points
Wi-Fi network adapters
Outdoor surveillance cameras
Point-to-point wireless bridges

Antennas RF Procurement Notes

Verify that the specific part number matches the required specifications before purchase. Confirm compatibility with the N-type female interface on the target device. Ensure the mounting hardware aligns with the installation environment requirements. Check for any regional regulatory compliance certifications relevant to the intended deployment area.

Antennas RF Selection Notes

Select this model when a directional radiation pattern is required to maximize link distance in the 2.4 GHz spectrum. The high gain specification makes it suitable for overcoming obstacles or reducing interference from other sources. Consider the physical dimensions and wind load ratings if installing in exposed outdoor locations.

Antennas RF Part Context

This component belongs to the Turmode series of networking antennas designed for wireless infrastructure enhancement. It serves as a peripheral accessory to improve connectivity for standard Wi-Fi equipment. The product line focuses on providing reliable signal amplification for both indoor and outdoor network deployments.
