WAY24143

Description：YAGI WIFI ANTENNA FOR 2.4GHZ
Series：-
Mfr：Turmode
Package：Bulk

SKU:61a7d1d9c5f2 Category: RF Antennas Brand: Turmode

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

WAY24143 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Turmode. Its product description is YAGI WIFI ANTENNA FOR 2.4GHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for WAY24143

Description：YAGI WIFI ANTENNA FOR 2.4GHZ
Series：-
Mfr：Turmode
Package：Bulk
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4415GHz
Frequency Range：2.4GHz ~ 2.483GHz
Antenna Type：Yagi
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：14dBi
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：1.770" (44.96mm)
Applications：WLAN
Power - Max：-

Antennas RF datasheet and documents for WAY24143

WAY24143

Antennas RF Overview

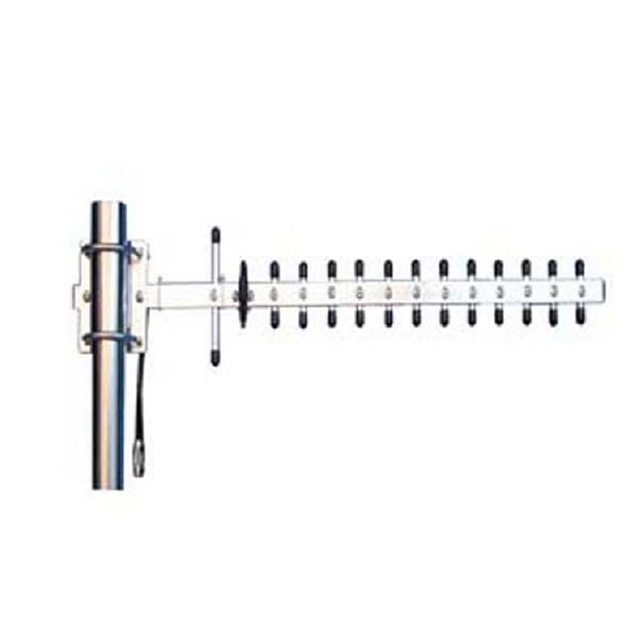

The Turmode WAY24143 is a 2.4 GHz outdoor directional Yagi WiFi antenna designed to enhance signal strength and range for 802.11b/g/n devices. It features high gain performance with low VSWR characteristics, ensuring efficient transmission. The unit supports both horizontal and vertical polarization installation options, making it adaptable for various mounting configurations. Constructed for outdoor durability, it serves as a robust solution for extending wireless network coverage in demanding environments.

Antennas RF Feature Summary

Directional Yagi design for focused signal transmission
Supports dual polarization installation flexibility
Optimized for outdoor environmental conditions

Antennas RF Applications

WiFi routers and access points
Wireless network adapters
IP cameras and security bridges

Antennas RF Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with existing network infrastructure. Confirm that the directional nature of the antenna aligns with the intended deployment geometry. Review technical specifications regarding frequency range and connector type prior to acquisition to prevent integration issues.

Antennas RF Selection Notes

Choose this model when extended range and directional focus are required rather than omnidirectional coverage. Consider the installation environment's exposure to weather elements given its outdoor rating. Evaluate the need for polarization flexibility based on the orientation of the receiving equipment.

Antennas RF Part Context

This component belongs to the Turmode series of high-gain WiFi antennas operating at 2.4 GHz. It is distinct from omni-directional models like the WAO24123 by its directional Yagi structure. The product line targets users needing to bridge distances between network nodes or extend coverage to specific areas.
