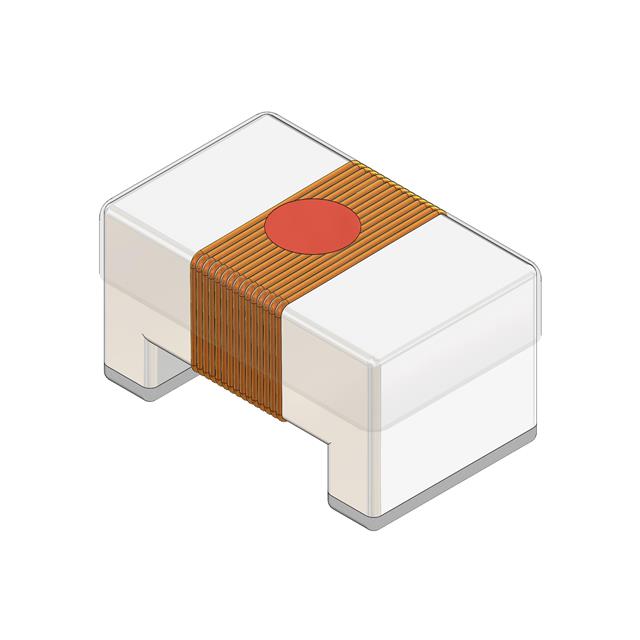

WCI1608CP6N8GDG

$0.09

Description：CHIP IND 1608,6.8NH,G,27Q,0.7A,4
Series：WCI1608CP
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2888711eb43d Category: Fixed Inductors Brand: INPAQ Technology Co., Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

WCI1608CP6N8GDG is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is CHIP IND 1608,6.8NH,G,27Q,0.7A,4. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for WCI1608CP6N8GDG

Description：CHIP IND 1608,6.8NH,G,27Q,0.7A,4
Series：WCI1608CP
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Wirewound
Material - Core：Ceramic
Inductance：6.8 nH
Tolerance：±2%
Current Rating (Amps)：700 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：110mOhm Max
Q @ Freq：27 @ 250MHz
Frequency - Self Resonant：5.8GHz
Ratings：-
Operating Temperature：-25°C ~ 125°C
Inductance Frequency - Test：250 MHz
Mounting Type：Surface Mount
Package / Case：0603 (1608 Metric)
Supplier Device Package：603
Size / Dimension：0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max)：0.040" (1.02mm)
Features：-

Fixed Inductors datasheet and documents for WCI1608CP6N8GDG

WCI1608CP6N8GDG

Fixed Inductors Overview

The WCI1608CP6N8GDG is a fixed inductor manufactured by INPAQ Technology Co., Ltd. It features an unshielded wirewound construction housed in a 0603 (1608 Metric) surface-mount package. The component has an inductance value of 6.8 nH and a maximum DC resistance of 110 mOhm. Its rated current capacity is specified at 700 mA.

Fixed Inductors Feature Summary

Unshielded wirewound design for specific RF applications
Compact 0603 surface-mount footprint
Low DC resistance for efficient power handling

Fixed Inductors Applications

RF circuit filtering
Impedance matching networks
High-frequency signal processing

Fixed Inductors Procurement Notes

Verify the exact inductance tolerance and current rating requirements against the official INPAQ datasheet before procurement. Ensure compatibility with standard reflow soldering profiles for 0603 packages. Confirm RoHS compliance status if required by your manufacturing standards. Cross-reference the full part number to ensure correct suffix designation.

Fixed Inductors Selection Notes

Select this component for high-frequency applications requiring low inductance values in a small form factor. Consider the unshielded nature when designing layouts to minimize potential crosstalk. Evaluate the 700 mA current rating against peak load conditions. Compare DCR specifications with alternative components to optimize efficiency in power-sensitive circuits.

Fixed Inductors Part Context

This inductor belongs to INPAQ's portfolio of passive components, which includes EMI filters and circuit protection devices. The company specializes in solutions for computer, communication, and consumer electronics. This specific model addresses the need for compact, high-performance inductors in modern miniaturized electronic designs.

Fixed Inductors Replacement Considerations

Consult official INPAQ documentation for verified substitute part numbers. Do not assume functional equivalence with generic 0603 inductors without verifying electrical parameters and physical dimensions.
