WCI2012CPR12GDG

$0.09

Description：CHIP IND 2012,120NH,G,50Q,0.4A,3
Series：WCI2012CP
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:194b41b6394c Category: Fixed Inductors Brand: INPAQ Technology Co., Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

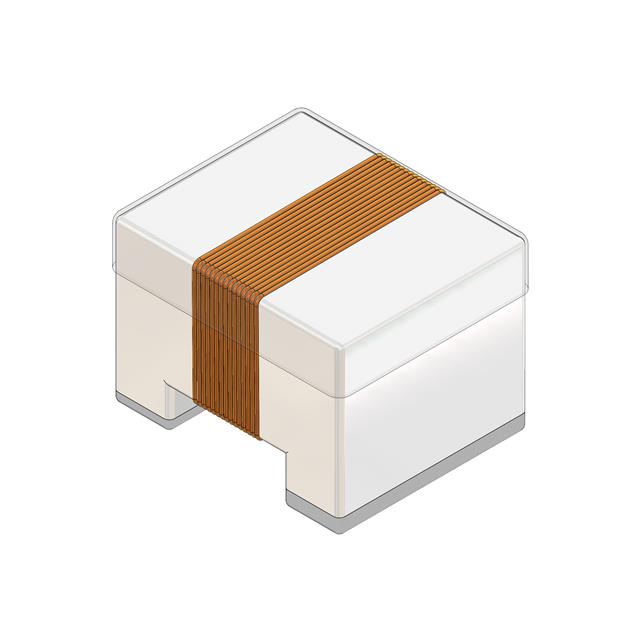

WCI2012CPR12GDG is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is CHIP IND 2012,120NH,G,50Q,0.4A,3. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for WCI2012CPR12GDG

Description：CHIP IND 2012,120NH,G,50Q,0.4A,3
Series：WCI2012CP
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Wirewound
Material - Core：Ceramic
Inductance：120 nH
Tolerance：±2%
Current Rating (Amps)：400 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：510mOhm Max
Q @ Freq：50 @ 250MHz
Frequency - Self Resonant：1.1GHz
Ratings：-
Operating Temperature：-25°C ~ 125°C
Inductance Frequency - Test：150 MHz
Mounting Type：Surface Mount
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Max)：0.060" (1.52mm)
Features：-

Fixed Inductors datasheet and documents for WCI2012CPR12GDG

WCI2012CPR12GDG

Fixed Inductors Overview

The WCI2012CPR12GDG is a fixed inductor manufactured by INPAQ Technology Co., Ltd. It features an unshielded wirewound construction housed in a 0805 (2012 Metric) package. The component has a nominal inductance of 120 nH and a maximum DC resistance of 510 mOhm. It supports a current rating of 400 mA, making it suitable for compact circuit designs requiring specific impedance characteristics within standard surface-mount footprints.

Fixed Inductors Feature Summary

Unshielded wirewound construction
Compact 0805 surface-mount footprint

Fixed Inductors Applications

General purpose signal filtering
RF matching networks
DC-DC converter output stages

Fixed Inductors Procurement Notes

Verify the exact inductance tolerance and saturation current specifications against the official datasheet before integration. Confirm that the unshielded design does not introduce unacceptable magnetic interference in dense PCB layouts. Ensure the operating temperature range aligns with the system's thermal environment requirements.

Fixed Inductors Selection Notes

Select this component when a low-profile 0805 inductor with 120 nH inductance is required. Consider the unshielded nature for applications where magnetic field containment is not critical. Evaluate the 400 mA current rating against peak load conditions to prevent saturation.

Fixed Inductors Part Context

This part belongs to INPAQ's fixed inductor portfolio, which includes various shielded and unshielded options. The company specializes in components for computing, communication, and consumer electronics. This specific model utilizes wirewound technology for precise inductance values in small form factors.

Fixed Inductors Replacement Considerations

Cross-reference with other 0805 120 nH unshielded wirewound inductors from manufacturers like Murata or TDK. Verify pin compatibility and physical dimensions to ensure direct replacement without PCB rework.
