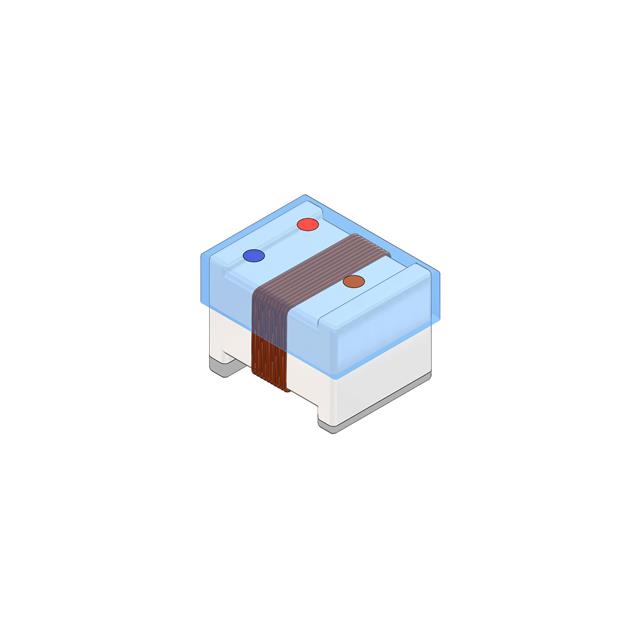

WCI4532CPR15GDG is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is CHIP IND 4532,150NH,G,75Q,1.15A,. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for WCI4532CPR15GDG
- Description：CHIP IND 4532,150NH,G,75Q,1.15A,
- Series：WCI4532CP
- Mfr：INPAQ Technology Co., Ltd
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Wirewound
- Material - Core：Ceramic
- Inductance：150 nH
- Tolerance：±2%
- Current Rating (Amps)：1.15 A
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：110mOhm Max
- Q @ Freq：75 @ 50MHz
- Frequency - Self Resonant：860MHz
- Ratings：-
- Operating Temperature：-25°C ~ 125°C
- Inductance Frequency - Test：50 MHz
- Mounting Type：Surface Mount
- Package / Case：1812 (4532 Metric)
- Supplier Device Package：1812
- Size / Dimension：0.195" L x 0.150" W (4.95mm x 3.81mm)
- Height - Seated (Max)：0.135" (3.43mm)
- Features：-
Fixed Inductors datasheet and documents for WCI4532CPR15GDG
Fixed Inductors Overview
The WCI4532CPR15GDG is a fixed inductor manufactured by INPAQ Technology Co., Ltd. It features an unshielded wirewound construction with a ceramic core, designed for surface mount technology (SMT) applications. The component has an inductance value of 150 nH and a maximum DC resistance of 110 mOhm. It supports a current rating of 1.15 A and utilizes the 1812 (4532 Metric) package outline.
Fixed Inductors Feature Summary
- Unshielded wirewound construction utilizing a ceramic core for structural integrity.
- Component miniaturization optimized for SMT layout efficiency.
- Designed as a passive component for EMI/EMC circuit protection.
Fixed Inductors Applications
- Computing electronics
- Communication devices
- Consumer electronics
Fixed Inductors Procurement Notes
Verify the manufacturer standard lead time of 12 weeks prior to order placement. Confirm that the part number corresponds to the specific 150 nH unshielded variant. Ensure compatibility with SMT assembly processes given the 1812 package dimensions. Validate electrical parameters against design requirements before procurement.
Fixed Inductors Selection Notes
Select this component for applications requiring compact unshielded inductors in the 1812 footprint. Consider the 1.15 A current rating and 110 mOhm resistance limits for circuit design. Verify suitability for computing or communication environments where EMI/EMC performance is relevant. Ensure the unshielded nature aligns with spatial and interference constraints.
Fixed Inductors Part Context
INPAQ Technology Co., Ltd specializes in circuit protection components and antenna products. The company manufactures EMI/EMC passive components, including fixed inductors like the WCI series. This product line supports various electronic sectors through standardized passive component solutions.
Fixed Inductors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official distributor catalogs for cross-reference data if alternative sourcing is required.
