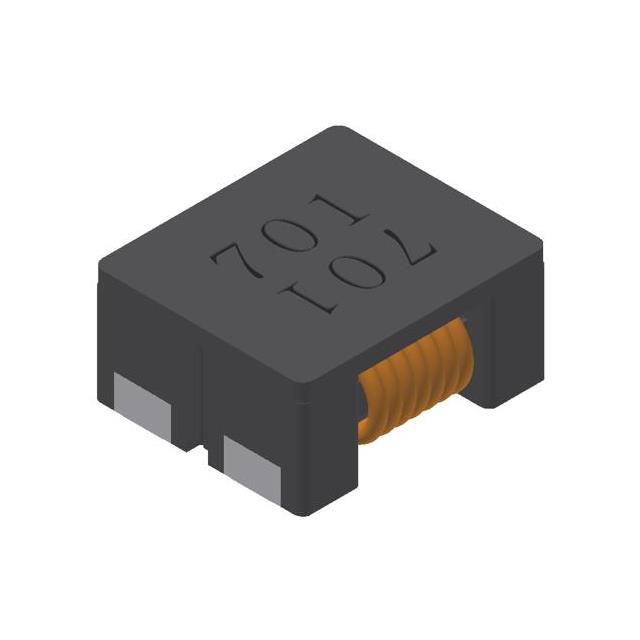

WCM 7060FASV-132-LM

$0.32

Description：CMC 3A 2LN 1.3 KOHM SMD AEC-Q200
Series：WCM7060FASV
Mfr：TAI-TECH Advanced Electronics Co., Ltd.
Package：Tape & Reel (TR)

SKU:e2c1878ce9fd Category: Common Mode Chokes Brand: TAI-TECH Advanced Electronics Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 3A 2LN 1.3 KOHM SMD AEC-Q200
Series：WCM7060FASV
Mfr：TAI-TECH Advanced Electronics Co., Ltd.
Package：Tape & Reel (TR)
Filter Type：-
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：20mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.276" L x 0.236" W (7.00mm x 6.00mm)
Height (Max)：0.150" (3.80mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：1.3 kOhms @ 100 MHz

Download product information

WCM 7060FASV-132-LM

Overview

The WCM 7060FASV-132-LM is a two-line surface mount common mode choke manufactured by TAI-TECH Advanced Electronics Co., Ltd. It exhibits an impedance of 1.3 kOhms at 100 MHz and supports a DC current rating of 3A. The component features a maximum DC resistance (DCR) of 20mOhm and is rated for 80V DC. It operates within a temperature range of -40°C to +125°C, including self-heating effects.

Feature Summary

Halogen-free construction ensuring environmental compliance
High reliability validated through AEC-Q200 qualification standards
Wide operating temperature range accommodating extreme thermal conditions

Applications

Automotive electronic circuit protection
Power line noise suppression in vehicle systems
EMI filtering for automotive communication interfaces

Procurement Notes

Verify the complete part number against official TAI-TECH documentation to ensure correct impedance and current ratings. Confirm that the specific suffix matches the required application parameters. Check for AEC-Q200 certification status if automotive grade reliability is mandatory. Ensure compatibility with surface mount assembly processes and peak reflow temperature limits specified in the datasheet.

Selection Notes

Select this component when high current handling capability of 3A is required alongside significant common mode noise attenuation. The low DCR minimizes power loss in power lines. Consider the 80V DC rating for appropriate voltage headroom. Evaluate the physical dimensions against available PCB space constraints before finalizing the design.

Part Context

This component belongs to the WCM 7060FASF-SERIES-LM family of wire wound power common mode filters. The series offers various impedance options while maintaining consistent current ratings and form factors. TAI-TECH produces these components using precision wire-wound techniques suitable for demanding industrial and automotive environments.

Replacement Considerations

Cross-reference with other models in the WCM 7060FASV series such as WCM 7060FASV-102-LM or WCM 7060FASV-701-LM for different impedance requirements. Verify pinout compatibility and mechanical footprint equivalence before substitution.
