Product Detailed Parameters
- Description：CMC 4A 2LN 1 KOHM SURFACE MOUNT
- Series：WCM
- Mfr：TAI-TECH Advanced Electronics Co., Ltd.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：4A
- DC Resistance (DCR) (Max)：13mOhm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.354" L x 0.276" W (9.00mm x 7.00mm)
- Height (Max)：0.189" (4.80mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：1 kOhms @ 100 MHz
Download product information
Overview

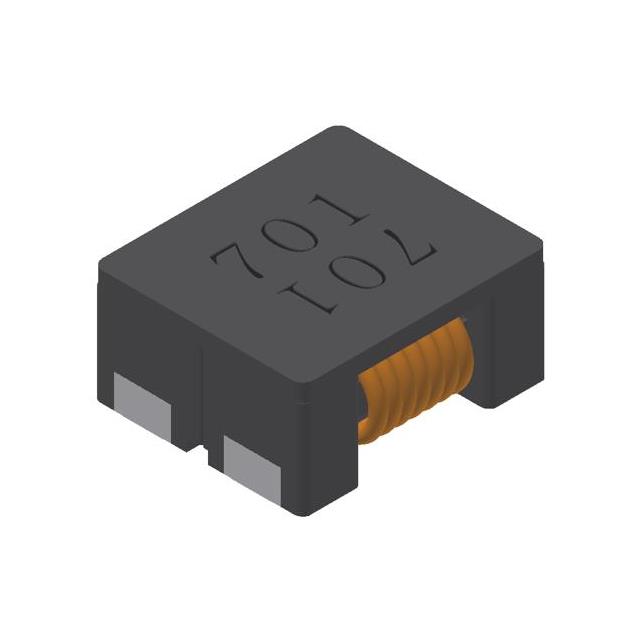

The WCM9070-102T40-M is a two-line surface-mount common mode choke manufactured by TAI-TECH Advanced Electronics Co., Ltd. It features a wire-wound construction designed for electromagnetic interference suppression. The component has a DC resistance of 13mΩ and an impedance of 1 kOhms at 100 MHz. It supports a maximum current rating of 4A and operates within a temperature range of -40°C to 125°C. The unit measures 9.00mm x 7.00mm with a voltage rating of 80V DC.
Feature Summary
- Two-line configuration for differential signal protection
- Wire-wound core structure for high inductance stability
- Surface mount package optimized for automated assembly
Applications
- High-speed data line filtering
- Power supply input noise suppression
- USB interface EMI reduction
Procurement Notes
Verify the manufacturer part number against official TAI-TECH documentation to ensure authenticity. Confirm that the received components match the specified 9.00mm x 7.00mm dimensions and RoHS compliance status. Check for physical damage to the terminals before integration into the circuit design.
Selection Notes
Select this component when a 4A current rating and 1kOhm impedance at 100MHz are required for common mode noise attenuation. Ensure the PCB footprint accommodates the 9.00mm x 7.00mm surface mount package. Verify that the operating temperature range of -40°C to 125°C meets the environmental requirements of the target application.
Part Context
This component belongs to the WCM series of wire-wound common mode filters from TAI-TECH. It is designed for surface mount technology applications requiring robust EMI suppression in compact spaces. The series typically includes various impedance and current ratings to suit different signal integrity needs.
Replacement Considerations
Cross-reference with other TAI-TECH WCM series parts such as WCM7060CLF2-400-M for similar form factors. Ensure substitute components maintain equivalent impedance characteristics and current handling capabilities to preserve circuit performance.
