WIFI2412-1

Overview

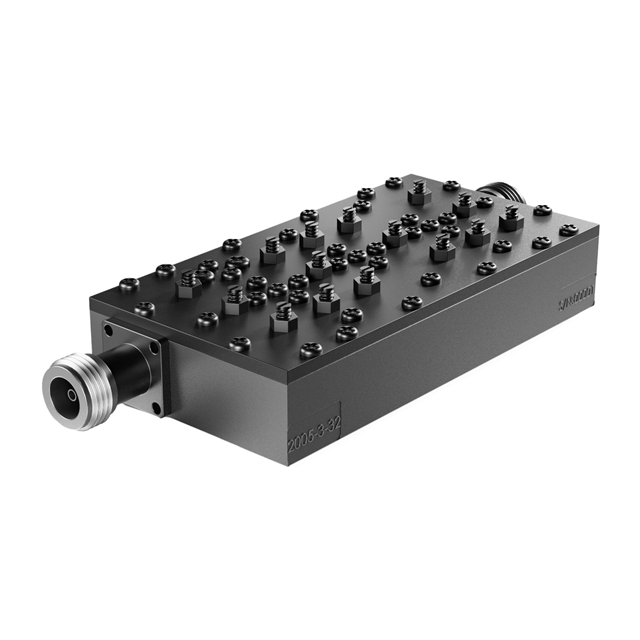

The Anatech Electronics Inc. WIFI2412-1 is a cavity bandpass RF filter designed for the 2.4 GHz ISM band. It operates with a center frequency of 2412 MHz and provides a 22 MHz bandwidth, covering the passband from 2401 to 2423 MHz. The component features a 50 Ohm input/output impedance and maintains an insertion loss of 3 dB maximum. Constructed as a module, it is engineered for stable signal filtering in wireless communication systems.

Feature Summary

• Cavity construction for high performance
• Bandpass filtering capability
• Module packaging format

Applications

• Wireless LAN equipment
• RF signal processing modules
• Communication system filtering

Procurement Notes

Verify the specific suffix (e.g., -1 vs -1O) against official datasheets to confirm exact electrical tolerances and physical dimensions. Ensure the required insertion loss and return loss specifications align with your system design before ordering. Confirm chassis or panel mounting requirements based on the selected variant's mechanical drawing.

Selection Notes

Select this component when a fixed 2412 MHz center frequency is required for WiFi applications. Compare the 3 dB insertion loss limit against system link budget requirements. Consider the module form factor for integration into existing RF chains where discrete components are unsuitable.

Part Context

This part belongs to Anatech Electronics' cavity bandpass filter series, which covers frequencies from 0.1 to 47 GHz. The WIFI2412-1 is specifically tuned for the 2.4 GHz WiFi band, sharing architectural similarities with other models like the WIFI2417-1 but differing in center frequency and bandwidth specifications.

Replacement Considerations

The WIFI2412-1O is a related variant with identical center frequency but potentially different mechanical or electrical tolerances. Verify interchangeability by comparing insertion loss and physical dimensions in official documentation.
