WIFI2417-2O

Overview

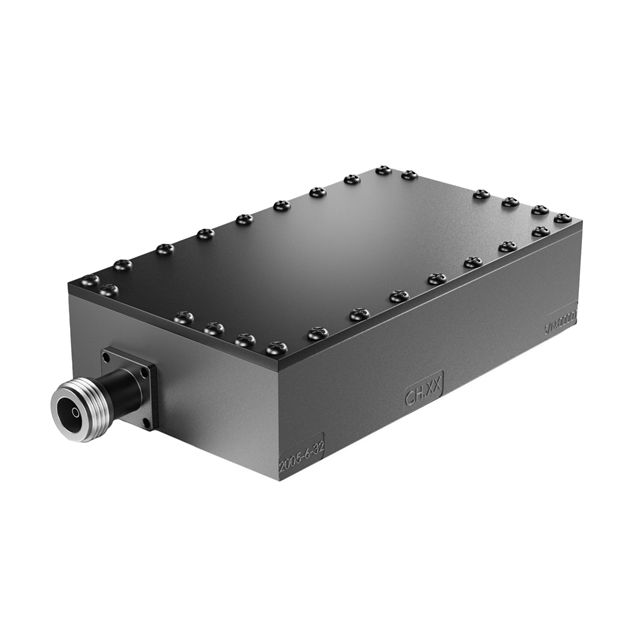

The WIFI2417-2O is a cavity bandpass filter manufactured by Anatech Electronics Inc., designed for outdoor radio frequency applications. It operates with a center frequency of 2417 MHz and provides a bandwidth of 22 MHz. The component features an insertion loss of 3 dB and a ripple of 1.2 dB. It is housed in a module package with chassis mounting capabilities, measuring 123.00 mm in length and 71.00 mm in width.

Feature Summary

• Constructed as a cavity bandpass filter suitable for outdoor environments
• Designed for specific WiFi frequency filtering applications
• Utilizes chassis mounting for secure installation

Applications

• Outdoor WiFi signal filtering
• Radio frequency interference suppression
• Cavity filter implementations in RF systems

Procurement Notes

Verify the exact center frequency and bandwidth requirements against the 2417 MHz specification before procurement. Confirm that the chassis mounting style and physical dimensions align with the available space in the target enclosure. Ensure the application environment supports the outdoor-rated construction of this cavity filter module.

Selection Notes

Select this component when a dedicated cavity filter is required for precise frequency selection at 2417 MHz. Consider the physical size constraints due to the module form factor. Evaluate the need for outdoor durability if the deployment location is exposed to environmental elements. Compare insertion loss specifications against system sensitivity requirements.

Part Context

This part belongs to the family of cavity bandpass filters produced by Anatech Electronics Inc. These components are typically used in scenarios requiring high selectivity and stability. The product line includes various models tuned to different frequencies within the WiFi spectrum, offering standardized mounting and performance characteristics for RF infrastructure.

Replacement Considerations

Check for direct substitutes such as the WIFI2422-3 or WIFI2427-4 if different center frequencies are acceptable. Verify that any replacement maintains the same chassis mounting interface and physical footprint to ensure compatibility with existing hardware assemblies without modification.
