Product Detailed Parameters
- Description：RF FILTER BAND PASS 2.437GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：2.437GHz Center
- Bandwidth：22MHz
- Filter Type：Band Pass
- Ripple：1.2dB
- Insertion Loss：3dB
- Mounting Type：Chassis Mount
- Package / Case：Module
- Size / Dimension：4.252" L x 2.205" W (108.00mm x 56.00mm)
- Height (Max)：1.024" (26.00mm)
Download product information
Overview

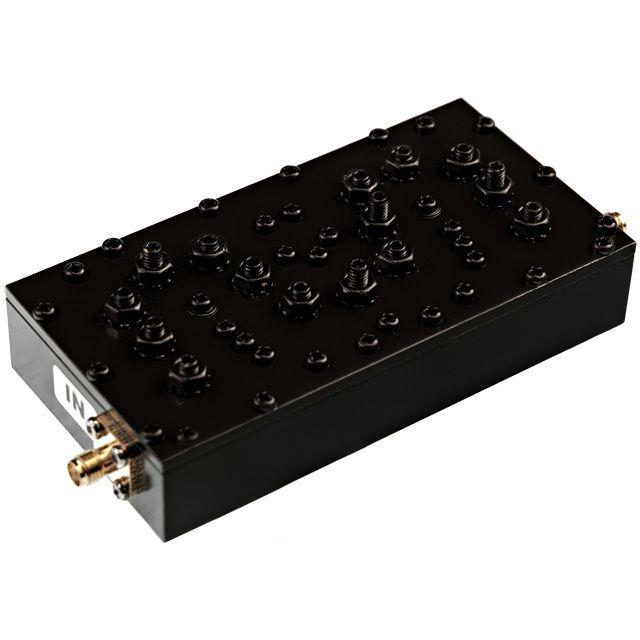

The WIFI2437-6 is a cavity band pass RF filter manufactured by Anatech Electronics Inc., designed for the 2.4 GHz Wi-Fi spectrum. It features a center frequency of 2437 MHz and a bandwidth of 22 MHz. Key electrical specifications include an insertion loss of 3 dB and a ripple of 1.2 dB. The component is housed in a module package with chassis mounting capabilities. Its physical dimensions are 4.252 inches in length by 2.205 inches in width, equivalent to 108.00 mm x 56.00 mm.
Feature Summary
- Cavity construction for high-performance RF filtering
- Chassis mount design for secure installation
- Module packaging format
Applications
- Wi-Fi signal conditioning
- RF front-end filtering
- Wireless communication systems
Procurement Notes
Verify the specific electrical tolerances and mechanical drawing requirements against your system design before ordering. Confirm that the chassis mounting style aligns with your enclosure constraints. Ensure the 2437 MHz center frequency matches your target application band. Check for any specific handling instructions related to the cavity structure.
Selection Notes
Select this component when a dedicated cavity filter is required for the 2.4 GHz ISM band. The 22 MHz bandwidth suits applications needing precise channel selection around 2437 MHz. Consider the chassis mount form factor if panel integration is preferred over PCB surface mount solutions. Evaluate the 3 dB insertion loss impact on overall system gain.
Part Context
Anatech Electronics Inc. specializes in microwave and RF components, including filters and duplexers. The WIFI2437-6 belongs to their line of cavity-based band pass filters, which are known for high power handling and low loss characteristics compared to planar technologies. This model targets specific frequency points within the crowded 2.4 GHz wireless environment.
Replacement Considerations
No public substitute part numbers are confirmed for this specific model. Cavity filters are often custom-tuned; verify compatibility with existing mechanical mounts and electrical interfaces before attempting substitution.
FAQ
What is the physical mounting type for the WIFI2437-6?
The WIFI2437-6 utilizes a chassis mount configuration.
Does the WIFI2437-6 support RoHS compliance?
RoHS status is listed as not applicable for this component.
