Product Detailed Parameters
- Description：RF FILTER BAND PASS 2.457GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：2.457GHz Center
- Bandwidth：22MHz
- Filter Type：Band Pass
- Ripple：1.2dB
- Insertion Loss：3dB
- Mounting Type：Chassis Mount
- Package / Case：Module
- Size / Dimension：4.843" L x 2.795" W (123.00mm x 71.00mm)
- Height (Max)：1.240" (31.50mm)
Download product information
Overview

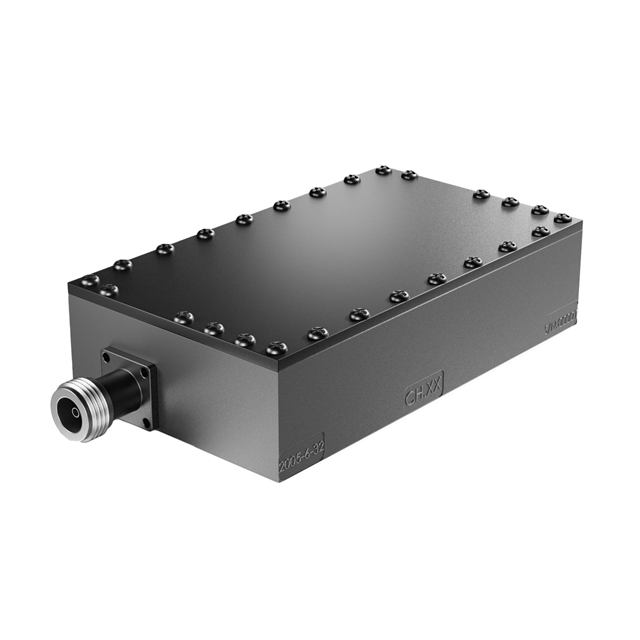

The WIFI2457-10O is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 2.457 GHz with a bandwidth of 22 MHz. The component is designed for Wi-Fi applications and features a module package type. Physical dimensions are specified as 4.252 inches in length and 2.205 inches in width, equivalent to 108.00 mm by 56.00 mm. The device is classified under RF filters and utilizes a chassis mounting configuration.
Feature Summary
- Cavity construction for high-performance RF filtering
- Designed specifically for Wi-Fi frequency bands
- Module format suitable for chassis integration
Applications
- Wi-Fi communication systems
- Radio frequency signal processing
- Chassis-mounted RF equipment
Procurement Notes
Verify the specific datasheet version for precise electrical tolerances and mechanical drawings before integration. Confirm that the chassis mount style aligns with your enclosure design constraints. Ensure the 2.457 GHz center frequency matches your system requirements exactly. Check for any environmental ratings if the deployment involves extreme temperatures or humidity.
Selection Notes
Select this component when a dedicated cavity filter is required for the 2.457 GHz Wi-Fi band. The module form factor simplifies installation compared to discrete components. Consider the physical size of 108.00 mm x 56.00 mm during layout planning. This part is suitable for applications demanding stable bandpass characteristics in a robust housing.
Part Context
Anatech Electronics Inc. specializes in RF filters and duplexers. The WIFI2457-10O belongs to their line of cavity-based RF components. These parts are engineered for reliability in wireless infrastructure. The company provides both standard and custom RF solutions for various communication standards.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for cross-reference information or compatible alternatives within the same product family.
