WIFI2462-11

Overview

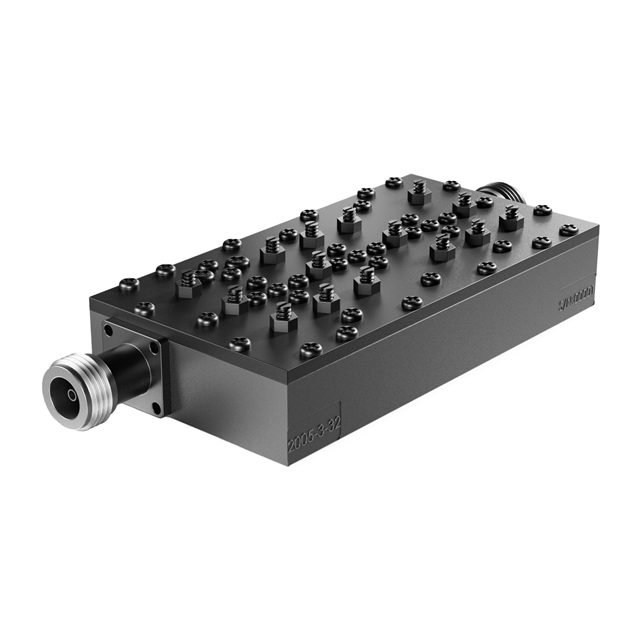

The WIFI2462-11 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.462 GHz and provides a bandwidth of 22 MHz. The component features a 3 dB insertion loss and 1.2 dB ripple. This passive radio-frequency signal-processing part is designed for specific WiFi applications requiring precise frequency selection.

Feature Summary

• Cavity construction for high-performance filtering
• Band pass functionality centered at 2.462 GHz
• Designed for WiFi signal processing

Applications

• WiFi communication systems
• RF signal processing modules
• Outdoor wireless infrastructure

Procurement Notes

Verify the exact suffix (e.g., -O, -S) against your schematic, as variants like WIFI2462-11O or WIFI2462-11-S may differ in connector type or enclosure style. Confirm the manufacturer is Anatech Electronics Inc. to ensure authenticity. Check datasheets for specific mechanical dimensions and mounting requirements before integration.

Selection Notes

Select this model when a fixed 2.462 GHz center frequency with 22 MHz bandwidth is required. The 3 dB insertion loss specification suits applications where moderate signal attenuation is acceptable. Consider the -S variant if SMA connectors are needed, or the -O variant for outdoor-rated cavity packaging.

Part Context

This component belongs to the Anatech Electronics Inc. family of cavity band pass filters. It is specifically tuned for the 2.4 GHz WiFi spectrum. Variants such as WIFI2462-11O and WIFI2462-11-S exist, indicating differences in housing or connectivity while maintaining core electrical characteristics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Ensure any replacement matches the 2.462 GHz center frequency, 22 MHz bandwidth, and 3 dB insertion loss specifications exactly.
