WLBD1608HCU600TH

Overview

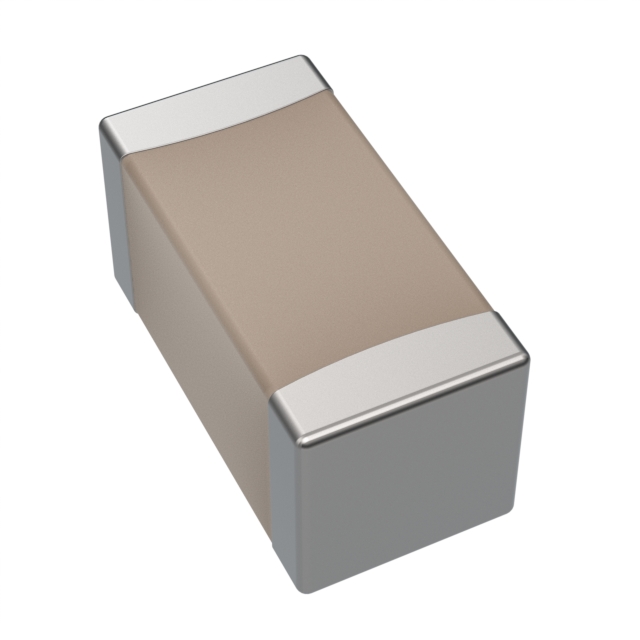

The WLBD1608HCU600TH is a single-element ferrite chip bead manufactured by Walsin Technology Corporation. It features a 0603 (1608 metric) surface-mount package with dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height. The component provides an impedance of 60 Ohms at a test frequency of 100 MHz with a tolerance of +/-25%. It supports a maximum DC current of 3 A and has a maximum DC resistance of 40 mOhms. The device operates within a temperature range of -55°C to +125°C and utilizes flexible SMD/SMT terminations.

Feature Summary

• Combines high-frequency noise suppression capabilities with the ability to handle high DC currents.
• Features shielded construction for effective electromagnetic interference mitigation.
• Utilizes flexible soft terminations to enhance mechanical reliability during soldering.

Applications

• EMI suppression in electronic circuits
• Signal integrity maintenance in high-speed data lines

Procurement Notes

Verify the specific impedance value required for your design, as datasheet listings for this part number show conflicting values of 30 Ohms and 60 Ohms at 100 MHz. Confirm the manufacturer's official specification sheet to ensure the correct electrical characteristic is selected for your application requirements.

Selection Notes

Select this component when a 0603 footprint is required for high-current noise filtering. The 3 A rating distinguishes it from lower-current variants in the same series. Ensure the 60 Ohm impedance aligns with the target noise frequency spectrum, typically around 100 MHz for general EMI suppression tasks.

Part Context

This part belongs to the WLBD series of ferrite beads from Walsin Technology Corporation. The 'HC' suffix typically denotes a high-current variant within the product line. It shares the 0603 form factor with other models like WLBD1608K1U800TB but offers significantly higher current handling capacity compared to standard signal-line beads.

Replacement Considerations

WLBD1608HCU600TB is a listed alternative with identical electrical specifications and packaging.
