WP113HDT

LED Indication - Discrete Overview

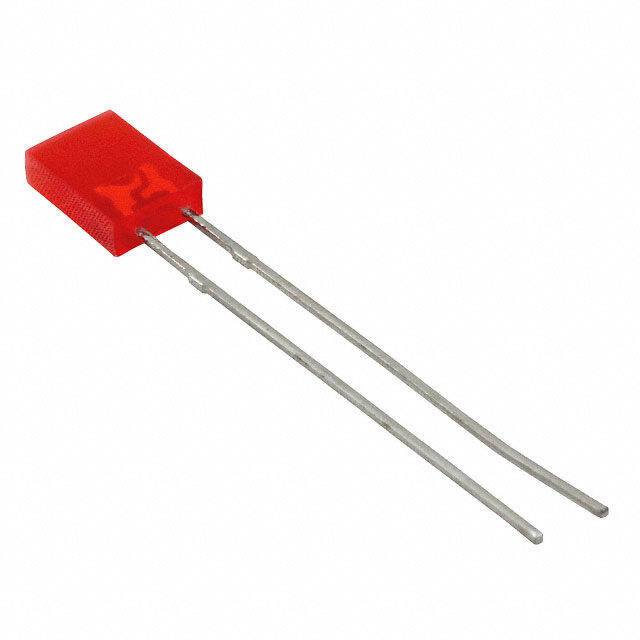

The WP113HDT is a single-color red LED manufactured by Kingbright, designed for through-hole mounting. It features a rectangular lens with dimensions of 2 mm x 5 mm and a height of 7 mm. The component emits light at a peak wavelength of 635 nm with a viewing angle of 110 degrees. Key electrical parameters include a forward current of 10 mA, a forward voltage of 2.05 V, and a power rating of 62.5 mW. The optical intensity is rated at 0.6 mcd. It operates within a temperature range of -40 C to +85 C.

LED Indication - Discrete Feature Summary

• Rectangular diffused lens design for wide-angle illumination
• Through-hole mounting style for standard PCB integration
• High reliability solid-state construction

LED Indication - Discrete Applications

• Panel indicators
• Instrumentation displays
• General-purpose status signaling

LED Indication - Discrete Procurement Notes

Verify end-of-life status before procurement as the component is listed as obsolete. Confirm availability through authorized distributors or secondary market suppliers. Ensure RoHS compliance documentation is obtained. Check for product change notifications that may affect specifications. Validate lead times from alternative sources due to discontinuation.

LED Indication - Discrete Selection Notes

Select this component only if rectangular form factor and specific red wavelength are required. Consider obsolescence risks when designing new products. Evaluate thermal management requirements based on 62.5 mW power rating. Verify mechanical fit within existing PCB layouts. Assess supply chain stability for long-term production needs.

LED Indication - Discrete Part Context

Kingbright produces a broad range of LEDs including SMD and through-hole variants. The WP series typically includes standard indicator LEDs. This model belongs to the single-color LED category. It is part of Kingbright's historical portfolio of general-purpose lighting components. The manufacturer specializes in optoelectronic devices for various industries.

LED Indication - Discrete Replacement Considerations

No public confirmed substitute part numbers are available. Due to the obsolete status, direct replacements must be identified through manual datasheet comparison. Verify pinout compatibility and mechanical dimensions. Ensure electrical parameters match application requirements.
